Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, install the door to the vehicle.
  2. Drive the hinge pins (3) through both halves in order to install the hinge pins.
  3. Install the check link. Refer to CHECK LINK REPLACEMENT - REAR DOOR (CARGO DOOR)  or CHECK LINK REPLACEMENT - REAR DOOR (E54)  .
  4. Install the speakers, if equipped. Refer to SPEAKER REPLACEMENT - REAR DOOR in Entertainment.
  5. Install the harness and the conduit to the right door.
  6. Install the wiring harness to he license plate lamp and the power lock actuator, if equipped.
  7. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT -- SLIDING DOOR in Doors.
  8. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

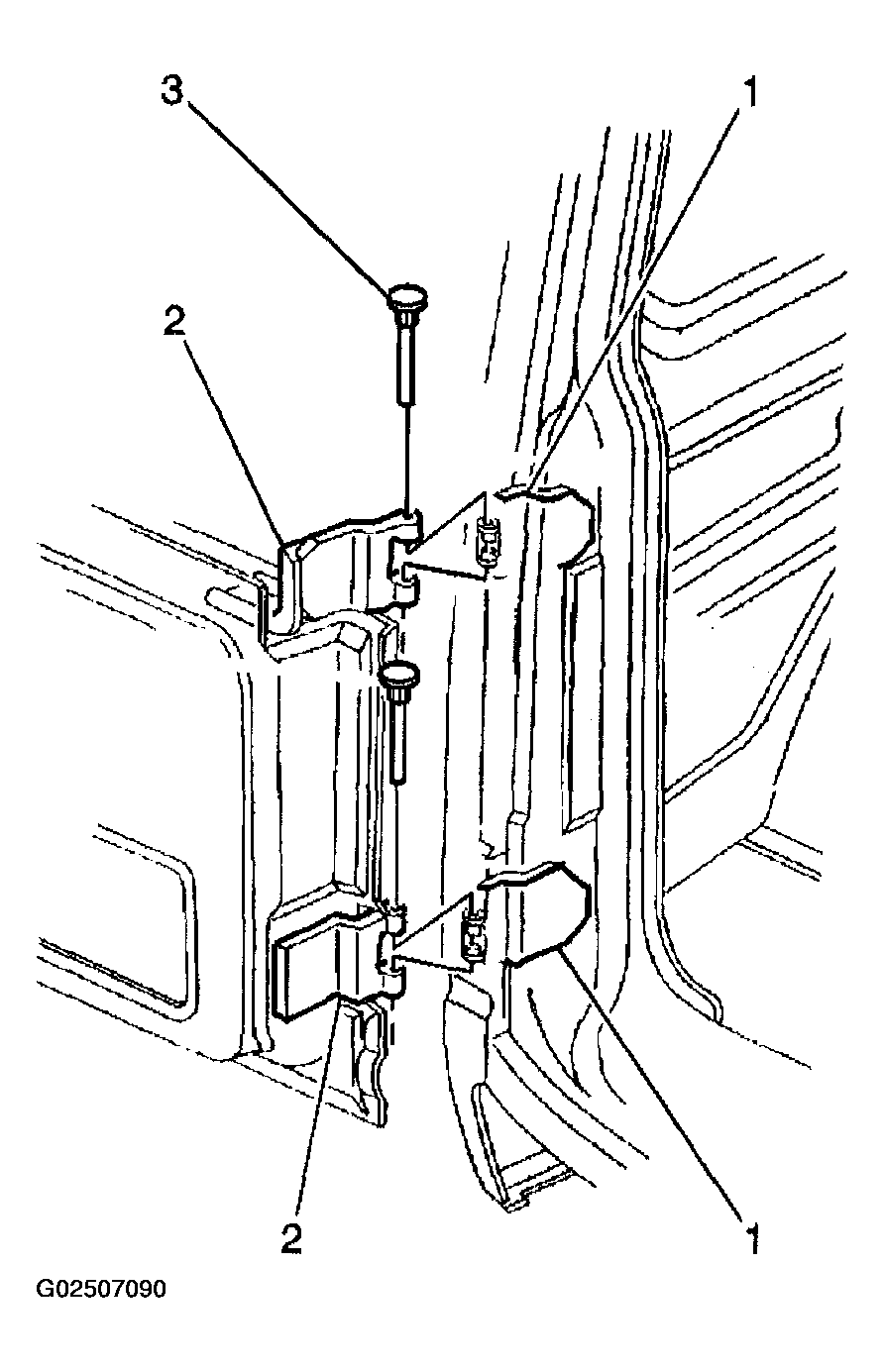

    9. Fig 1: Identifying Rear Cargo Door Hinge Components
    G02507090Courtesy of GENERAL MOTORS CORP.
