Door Rattle Adjustment - Rear

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the spring-retained bumper on the lower edge of the door for tension. Replace the bumper assembly, if needed.
  2. Loosen the bolts that retain the edge guard plate on the rear door frame.
  3. Slide the plate forward.
    4. NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  4. Tighten the bolts that retain the edge guard plate on the rear door frame. Tighten:  Tighten the bolts that retain the edge guard plate on the rear door frame to 5 N.m (45 lb in).

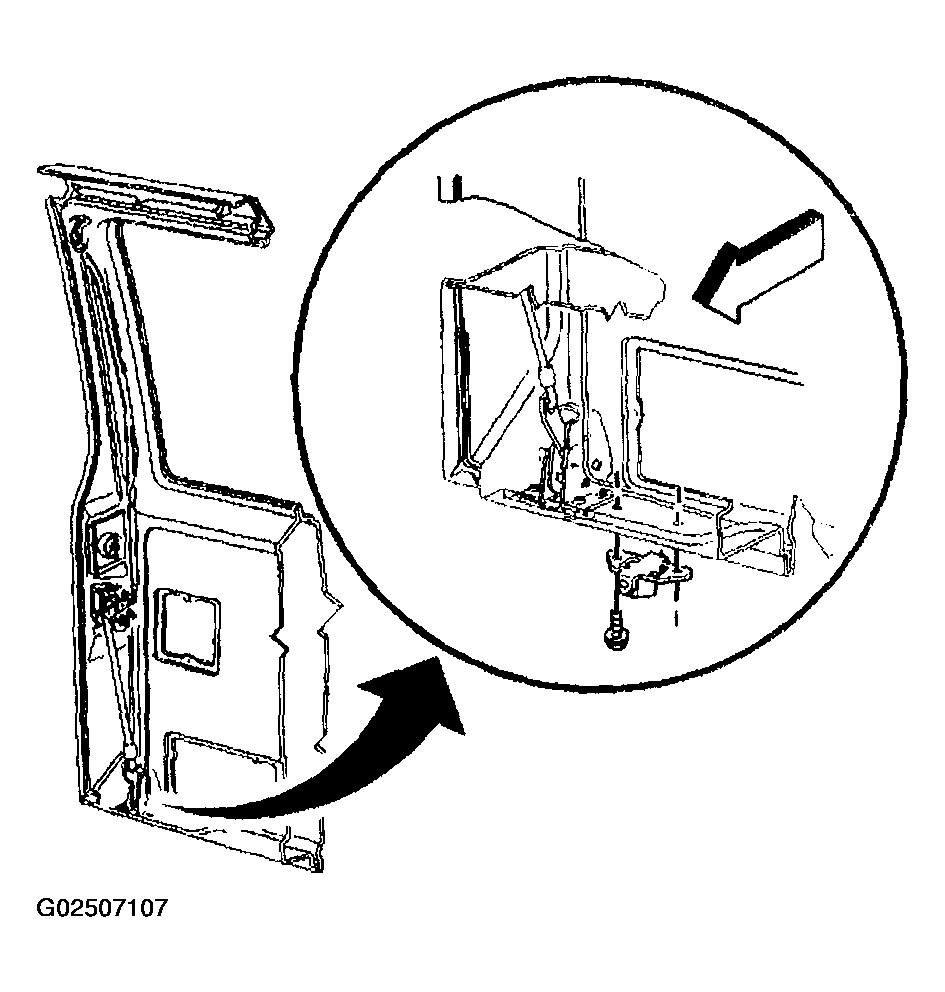

    5. Fig 1: Identifying Rear Door Frame Edge Guard Plate
    G02507107Courtesy of GENERAL MOTORS CORP.
