Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in Interior Trim.
  2. Remove the nut that retains the locator to the door frame opening.
  3. Remove the locator from the vehicle.
  4. Remove the screws that retain the locator to the door.
  5. Remove the locator from the door.

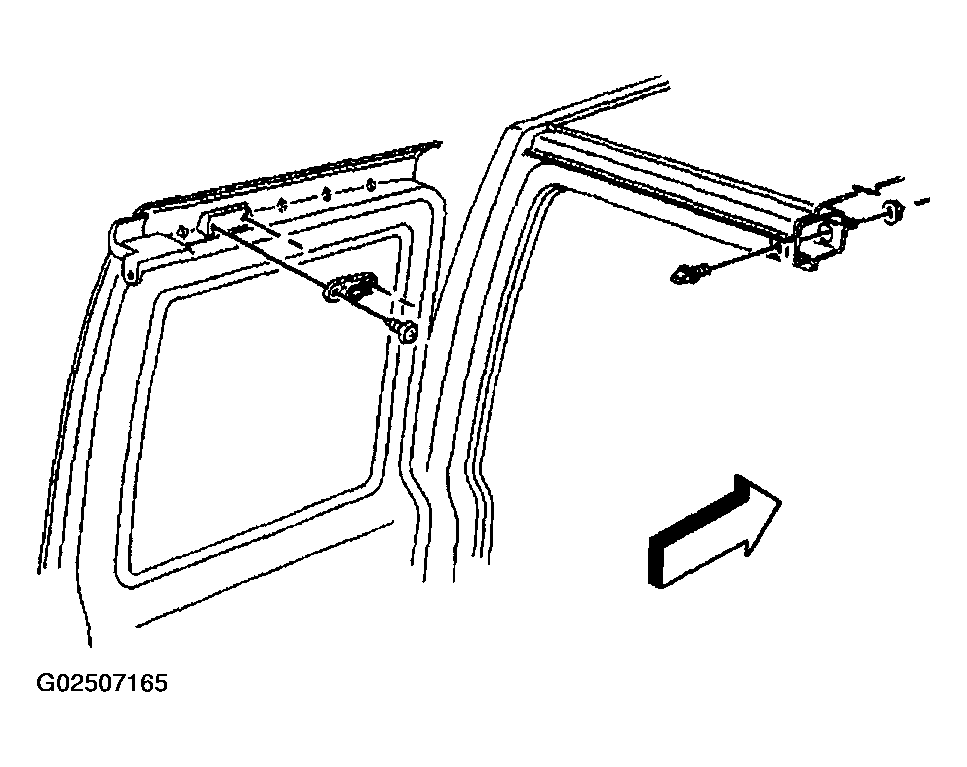

    6. Fig 1: Removing & Installing Upper Door Locator
    G02507165Courtesy of GENERAL MOTORS CORP.
