Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the locator to the door.
  2. Install the screws that retain the locator to the door. Tighten:  Tighten the screws that retain the locator to the door to 8 N.m (71 lb in).
  3. Install the locator to the vehicle.
  4. Install the bolts that retain the locator to the vehicle. Tighten:  Tighten the bolts that retain the locator to the vehicle to 8 N.m (71 lb in).
  5. Install the rear door frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in Interior Trim.

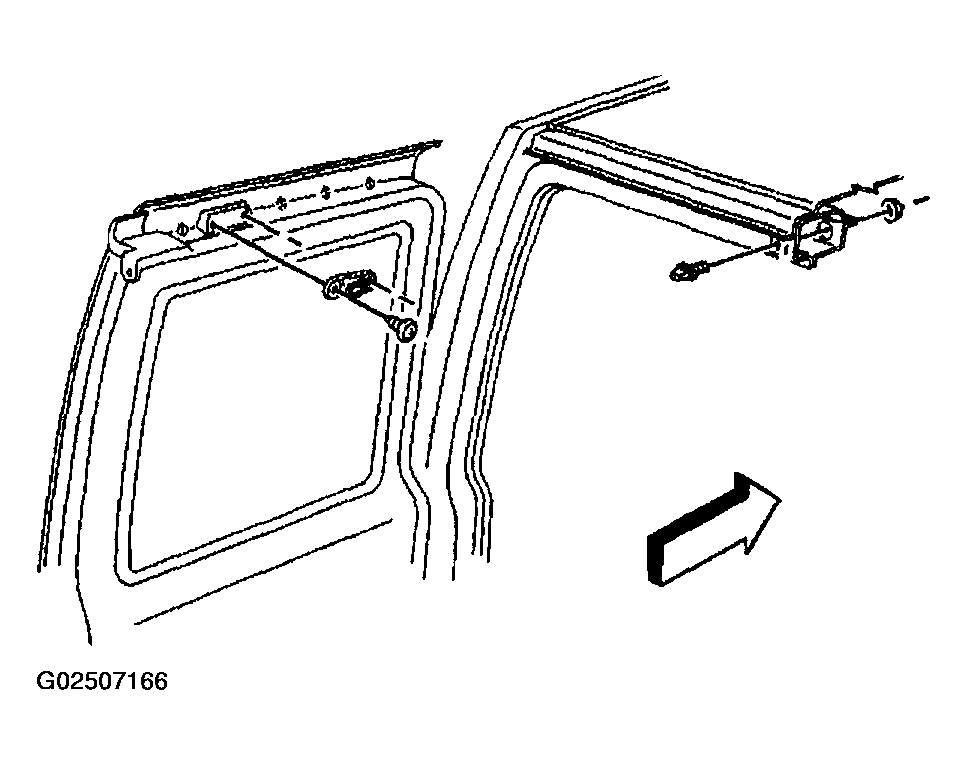

    6. Fig 1: Removing & Installing Upper Door Locator
    G02507166Courtesy of GENERAL MOTORS CORP.
