Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the check link (5) to the door.
  2. Install the check link boot to the door (6).
  3. Install the check link boot bolts to the door. Tighten:  Tighten the check link bolts to the door to 6 N.m (53 lb in).
  4. Install the check link bracket (1) and the check link lock spring.
  5. Install the check link bracket screws (2). Tighten:  Tighten the check link bracket screws to 4 N.m (35 lb in).
  6. Remove the water deflector. Refer to Water Deflector Replacement  .
  7. Install the trim panel. Refer to TRIM PANEL REPLACEMENT -- DOOR .

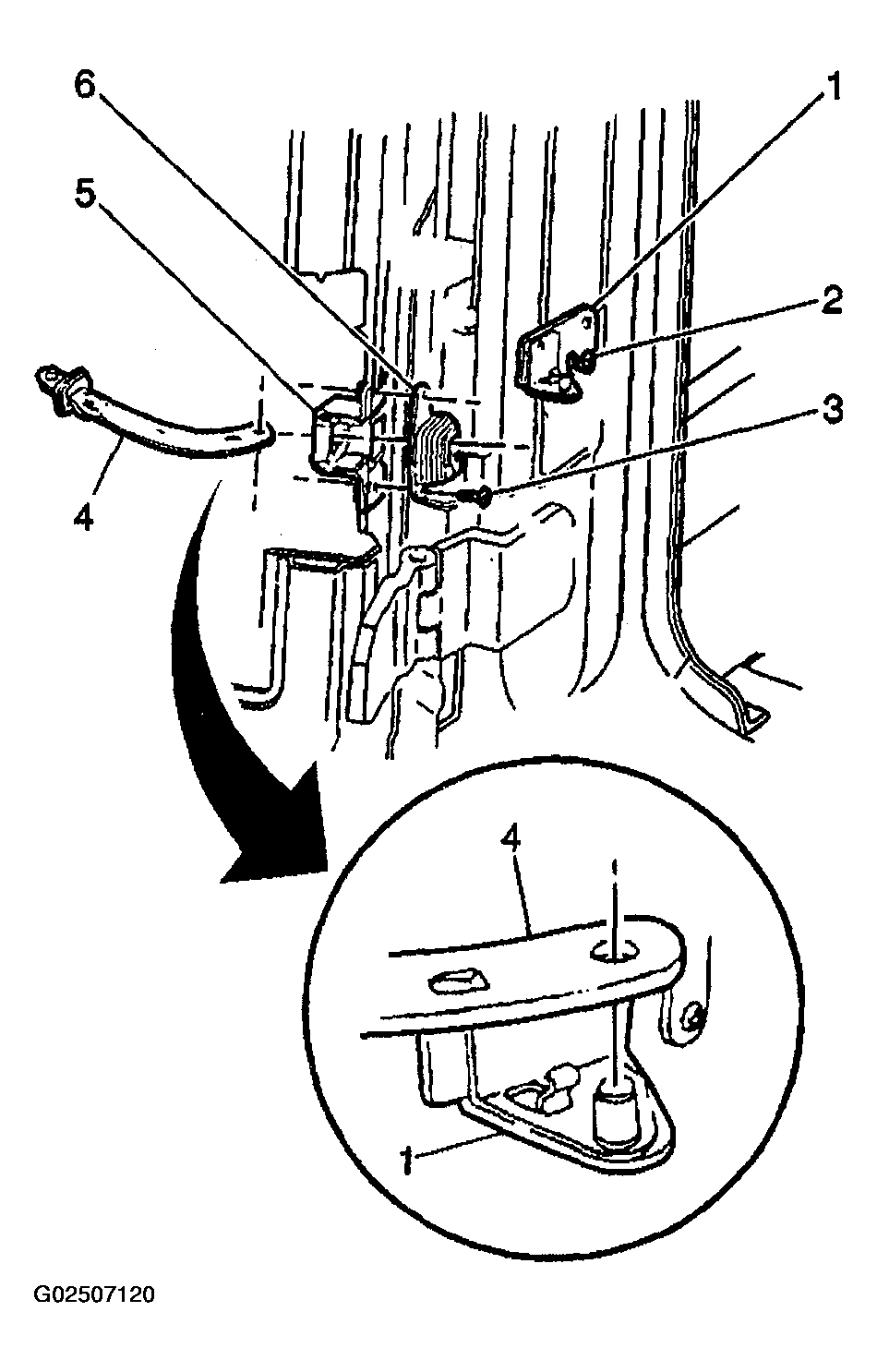

    8. Fig 1: Removing & Installing Rear Door (E54) Check Link
    G02507120Courtesy of GENERAL MOTORS CORP.
