Body Rear End Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

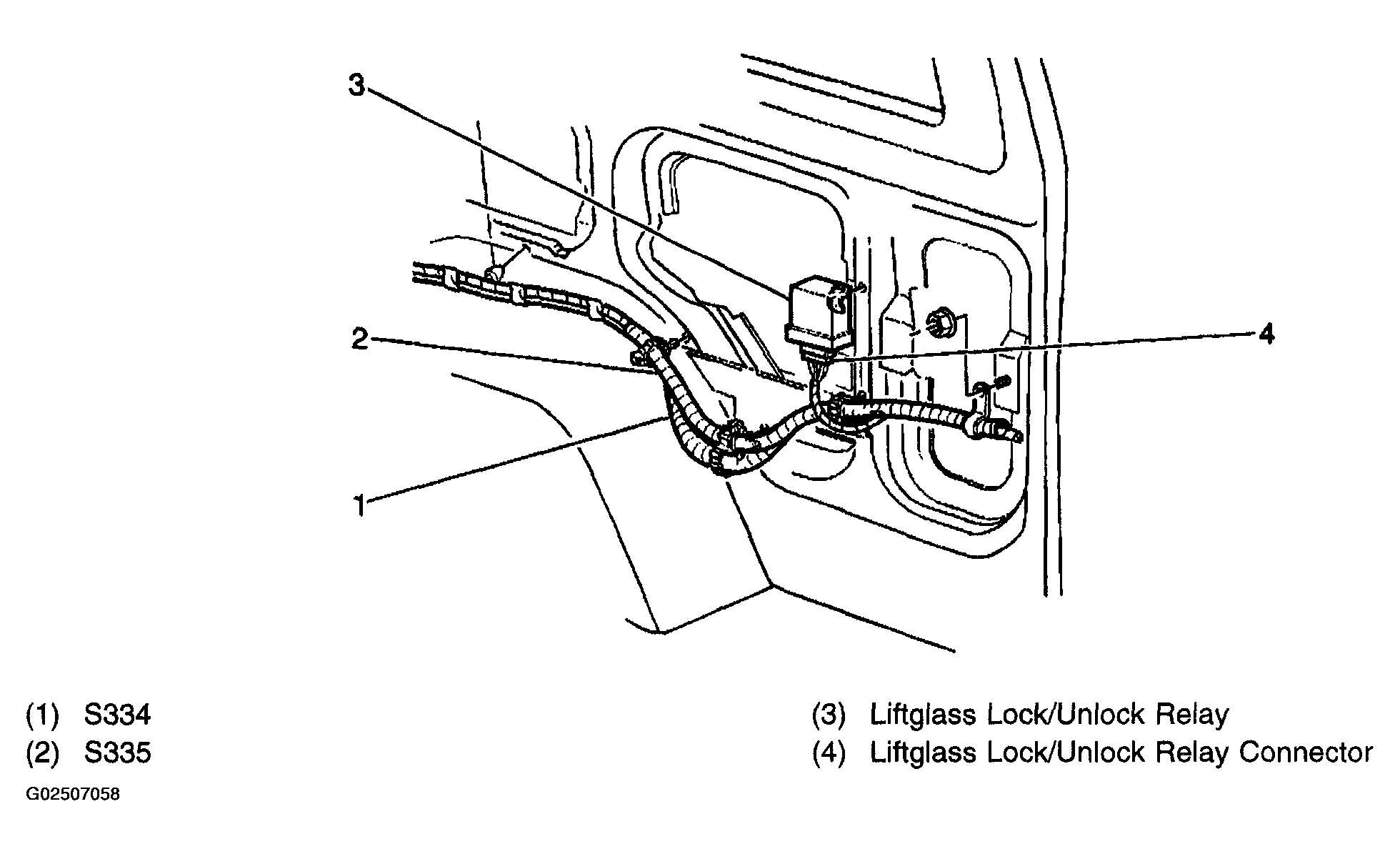

Fig 1: Body Wiring - RR
G02507058Courtesy of GENERAL MOTORS CORP.

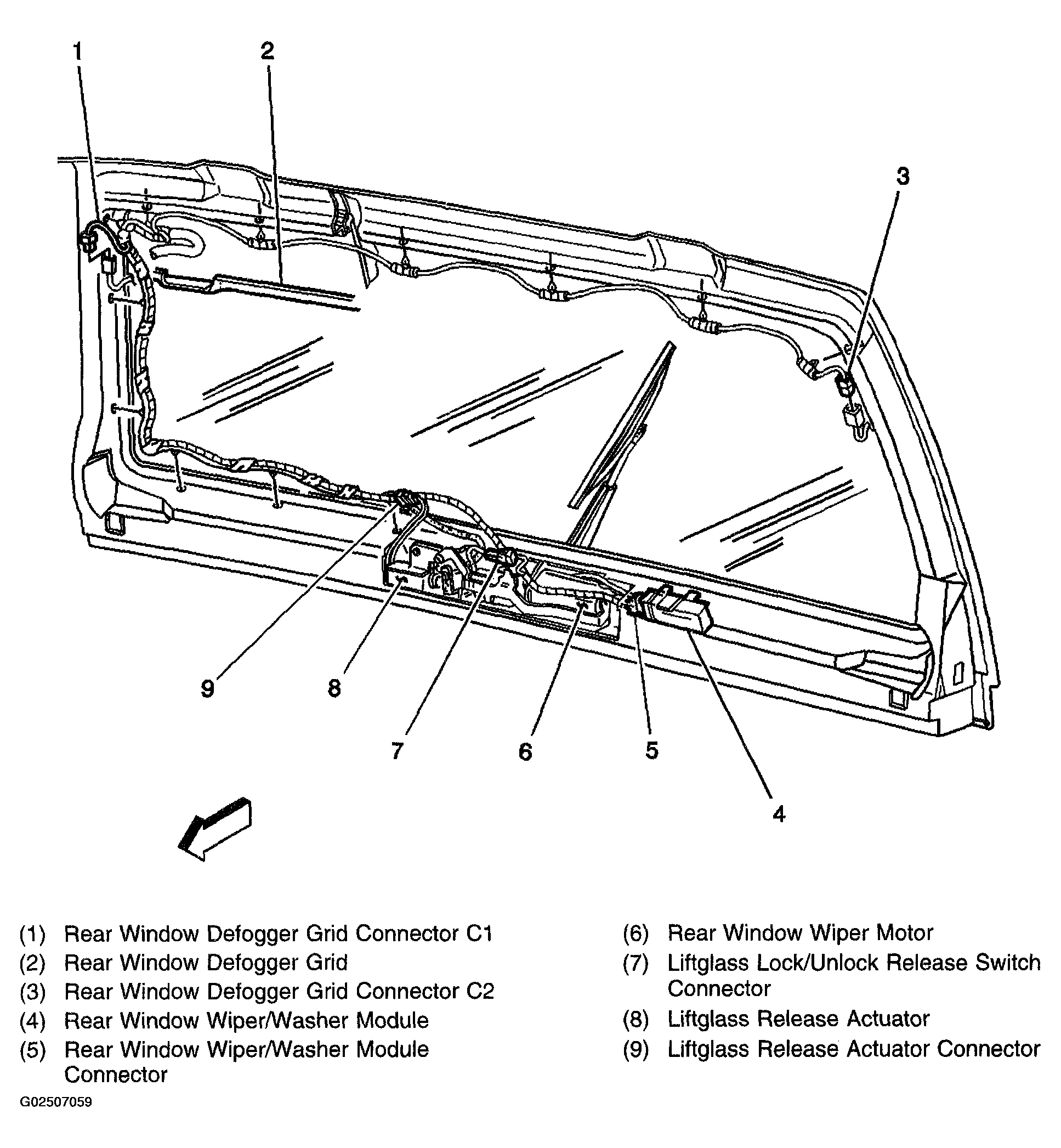

Fig 2: Liftgate Harness Location View
G02507059Courtesy of GENERAL MOTORS CORP.
