Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use J 38778 in order to remove the retainers from the fender and the extension and from the wheelhouse.
  2. Remove the extension from the wheelhouse.

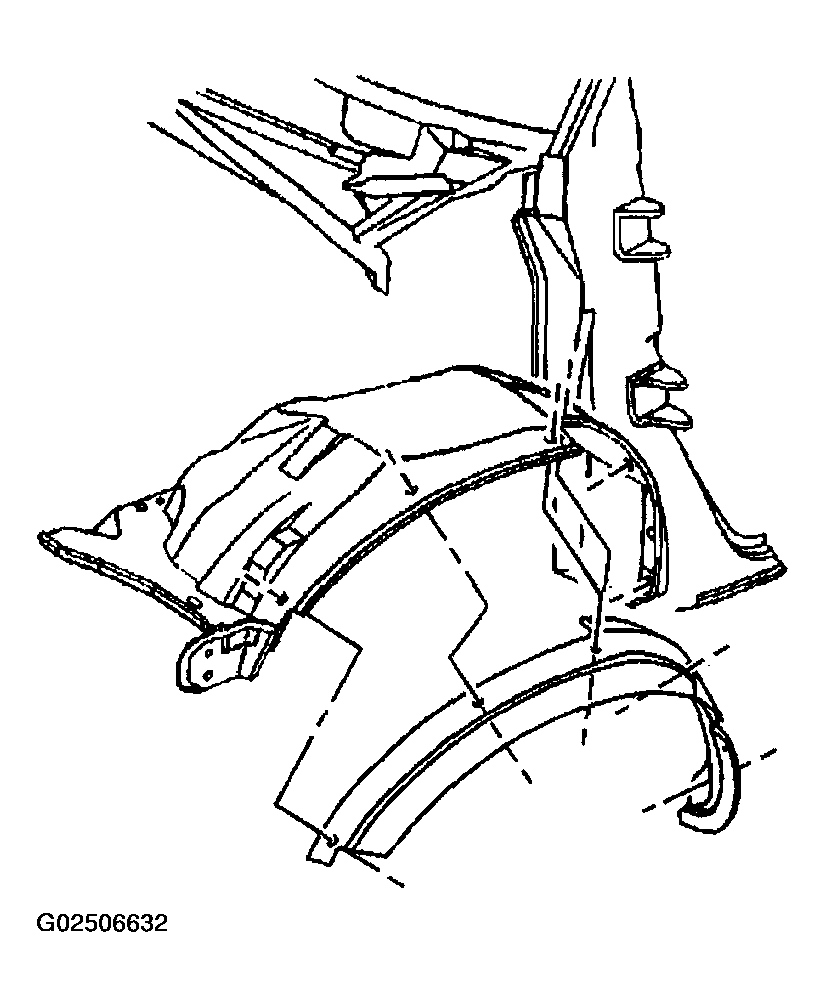

  3. Fig 1: Removing Extension From Wheelhouse
    G02506632Courtesy of GENERAL MOTORS CORP.
