Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Remove the outside air temperature sensor and wiring, if equipped.
  3. Remove the center support bracket bolts.
  4. Remove the support bracket from the vehicle.

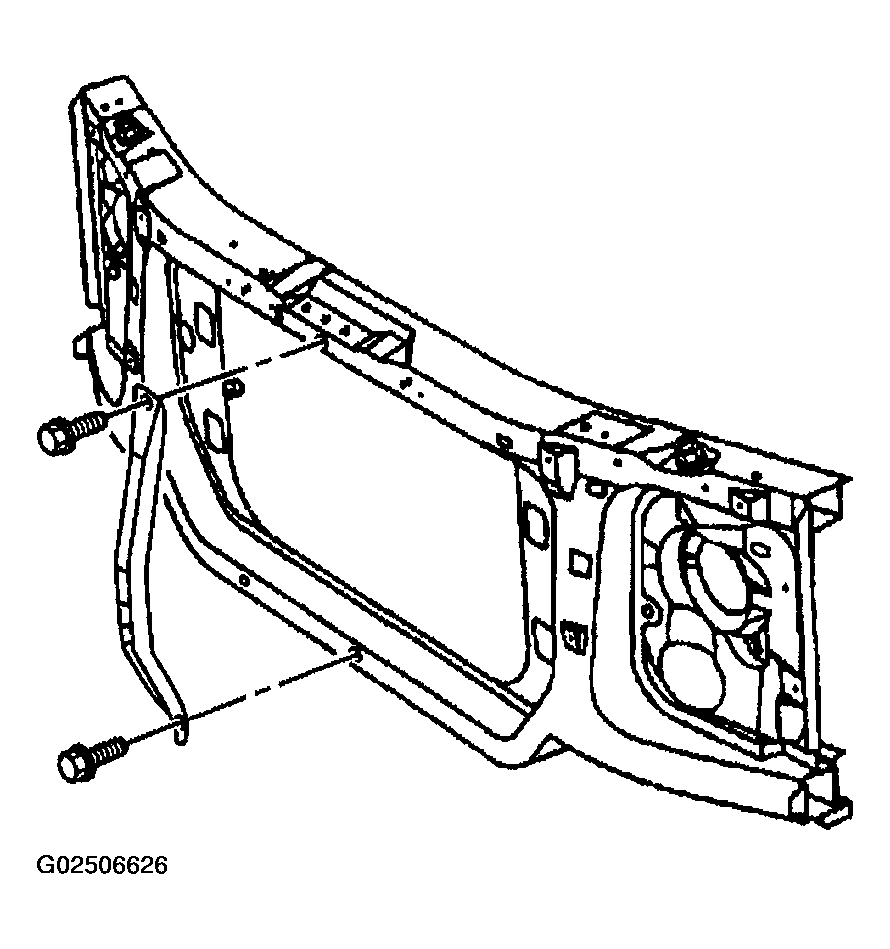

    5. Fig 1: Removing Support Bracket
    G02506626Courtesy of GENERAL MOTORS CORP.
