Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Install the center support bracket to the vehicle.
  2. Install the support bracket bolts. Tighten:  Tighten the bolts to 25 N.m (18 ft. lb.).
  3. Install the outside air temperature sensor and wiring, if equipped.
  4. Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.

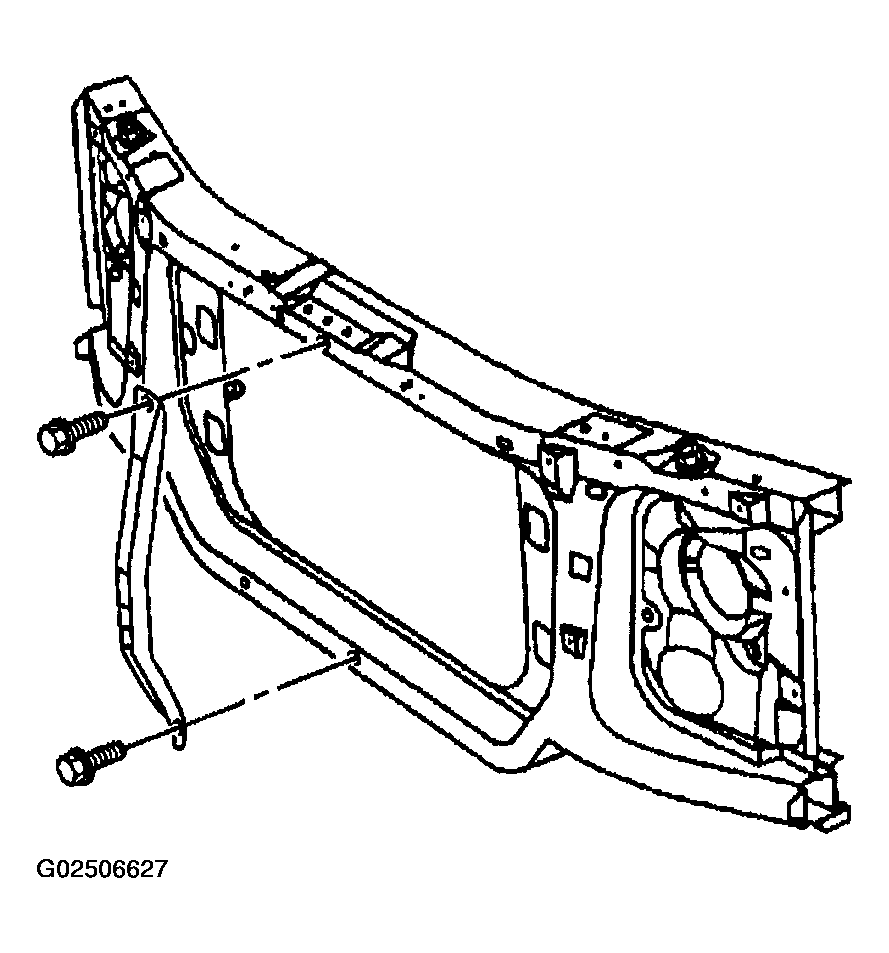

    5. Fig 1: Installing Support Bracket
    G02506627Courtesy of GENERAL MOTORS CORP.
