Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse splash shield to the wheelhouse.
  2. Push the retainers into the wheelhouse holes in order to retain the splash shield to the wheelhouse.

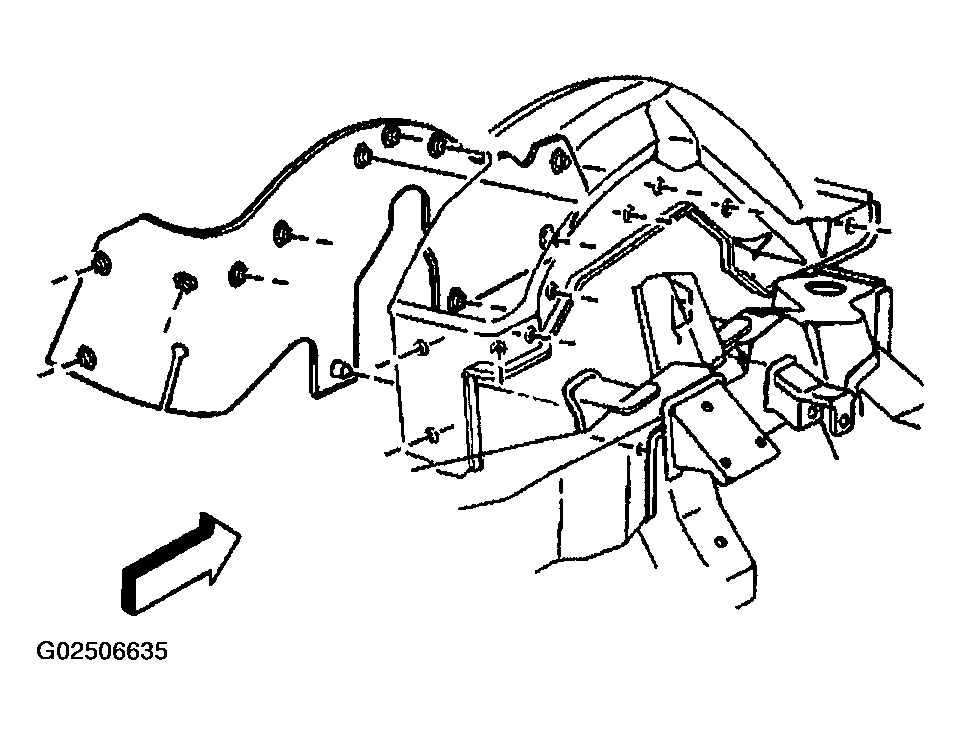

  3. Fig 1: Installing Front Wheel House Splash Shield
    G02506635Courtesy of GENERAL MOTORS CORP.
