Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hood seal retainers by using J 38778.
  2. Remove the rear hood seal from the hood.

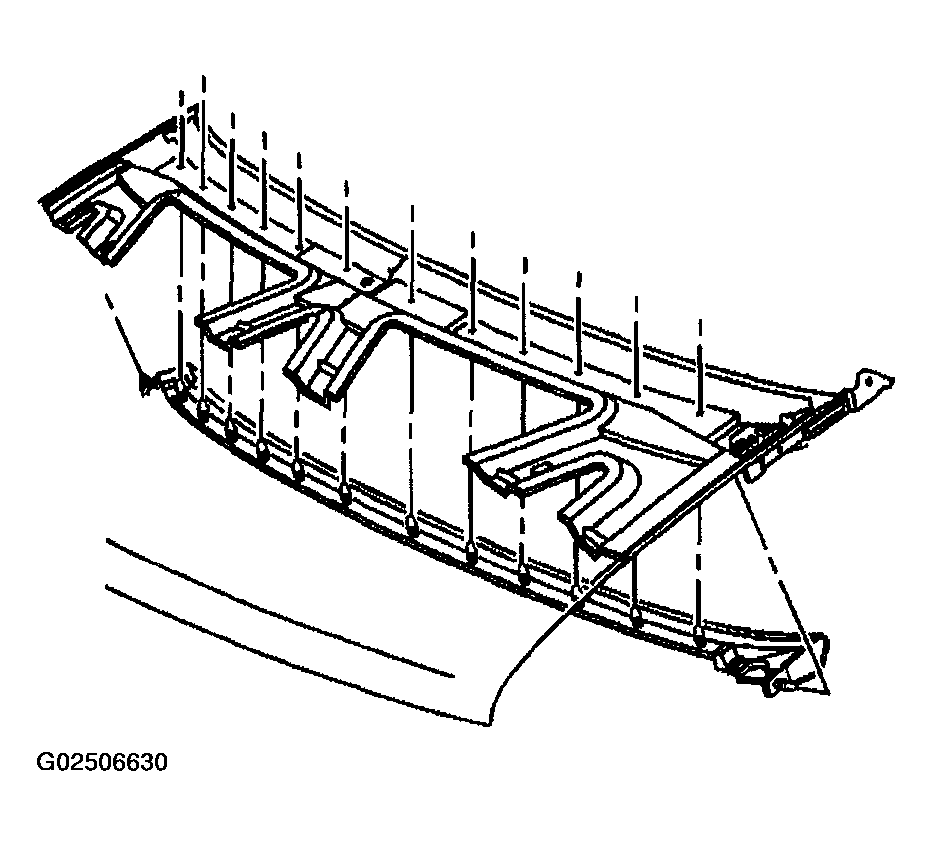

    3. Fig 1: Removing Hood Rear Seal
    G02506630Courtesy of GENERAL MOTORS CORP.
