Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear hood seal to the hood.
  2. Push the retainers into the hood in order to retain the rear hood seal.

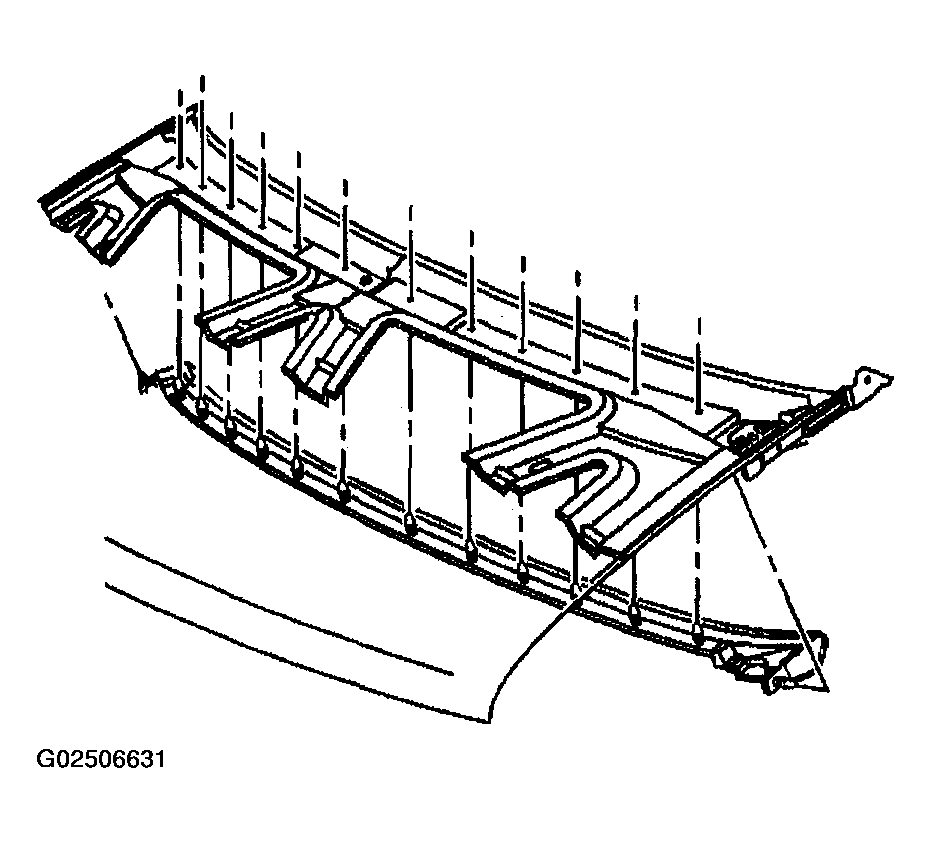

  3. Fig 1: Installing Hood Rear Seal
    G02506631Courtesy of GENERAL MOTORS CORP.
