Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. With an assistant, remove the hood to hinge bolts.
  3. With an assistant, remove the hood from the vehicle.

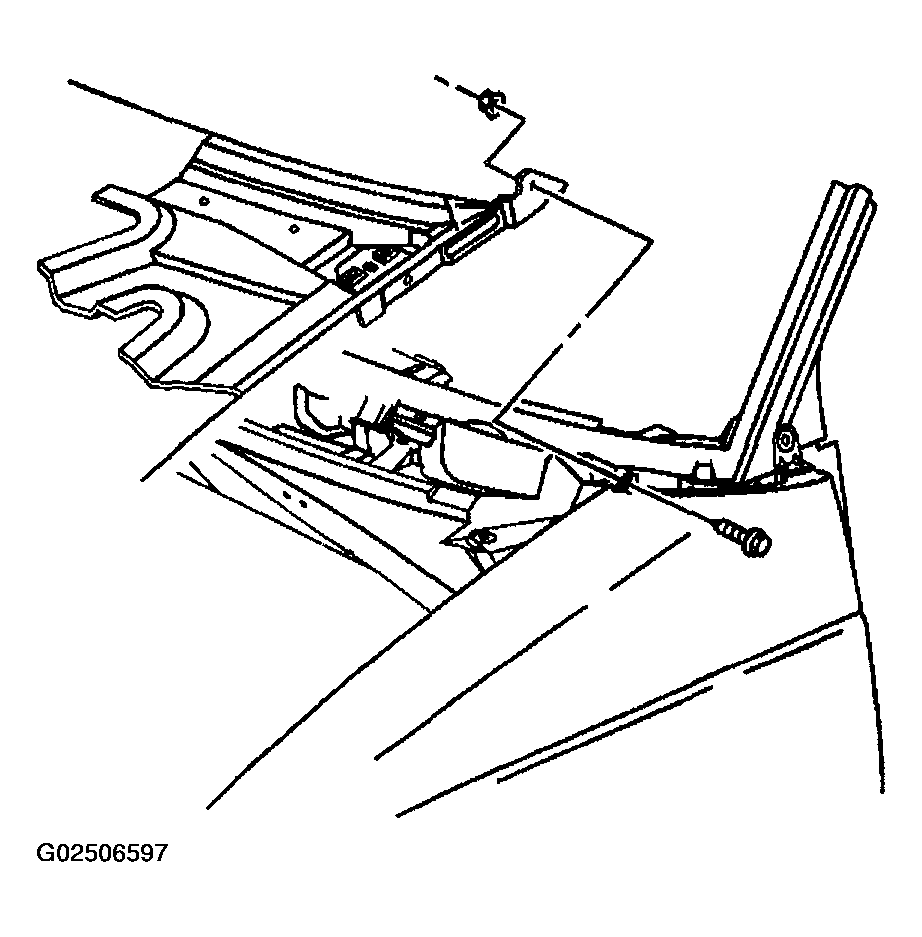

  4. Fig 1: Removing Hood
    G02506597Courtesy of GENERAL MOTORS CORP.
