Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. With an assistant, install the hood to the vehicle.
  2. Install the hood to hinge bolts. Tighten:  Tighten the hood to hinge bolt to 25 N.m (18 ft. lb.).
  3. Lower the hood.

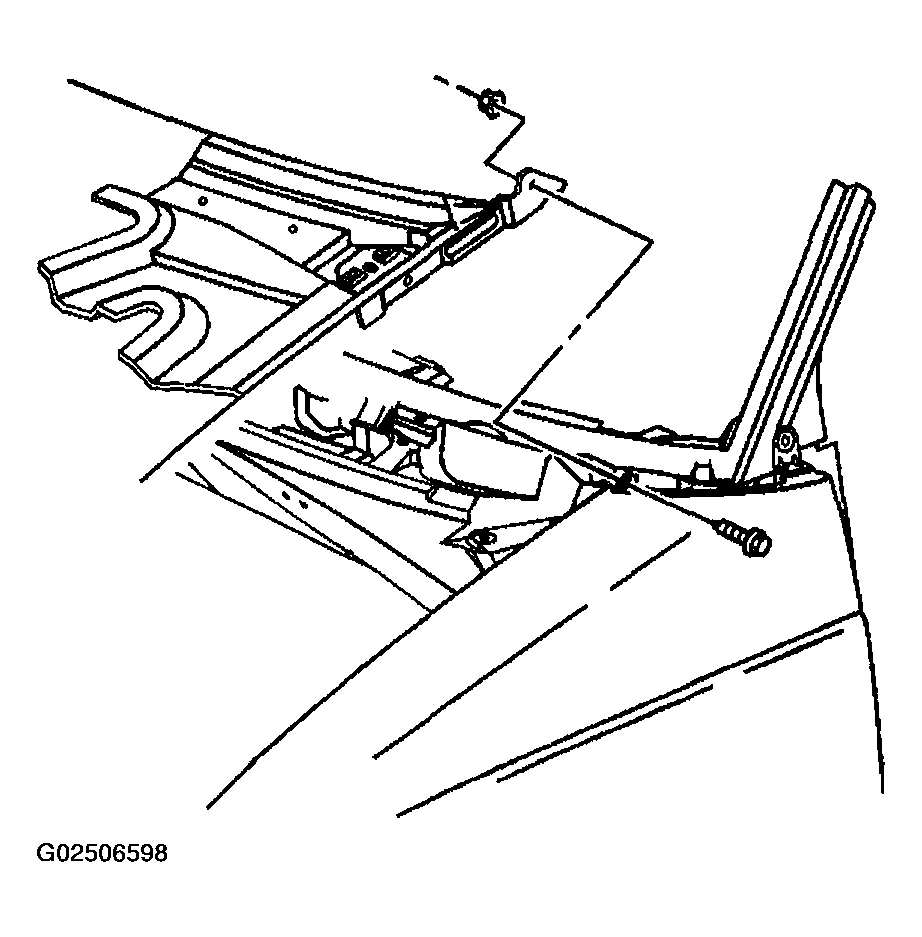

    4. Fig 1: Installing Hood
    G02506598Courtesy of GENERAL MOTORS CORP.
