Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable flat-bladed tool, push on the hood mounted end of the spring outward to remove the spring from the hood.

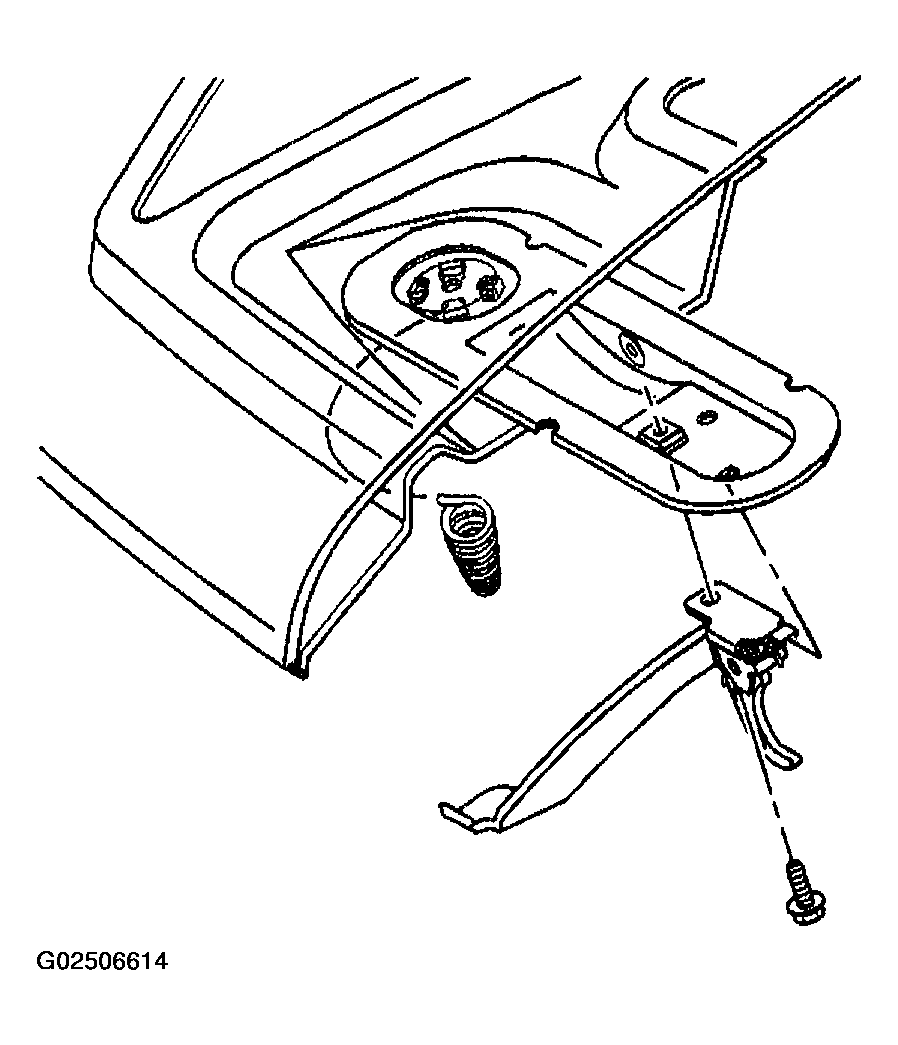

Fig 1: Removing Hood Pop-Up Spring
G02506614Courtesy of GENERAL MOTORS CORP.
