Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Install the secondary hood latch to the hood. Position the tab into the slot.
  2. Install the hood latch bolt. Tighten:  Tighten the hood latch bolt to 27 N.m (20 ft. lb.).

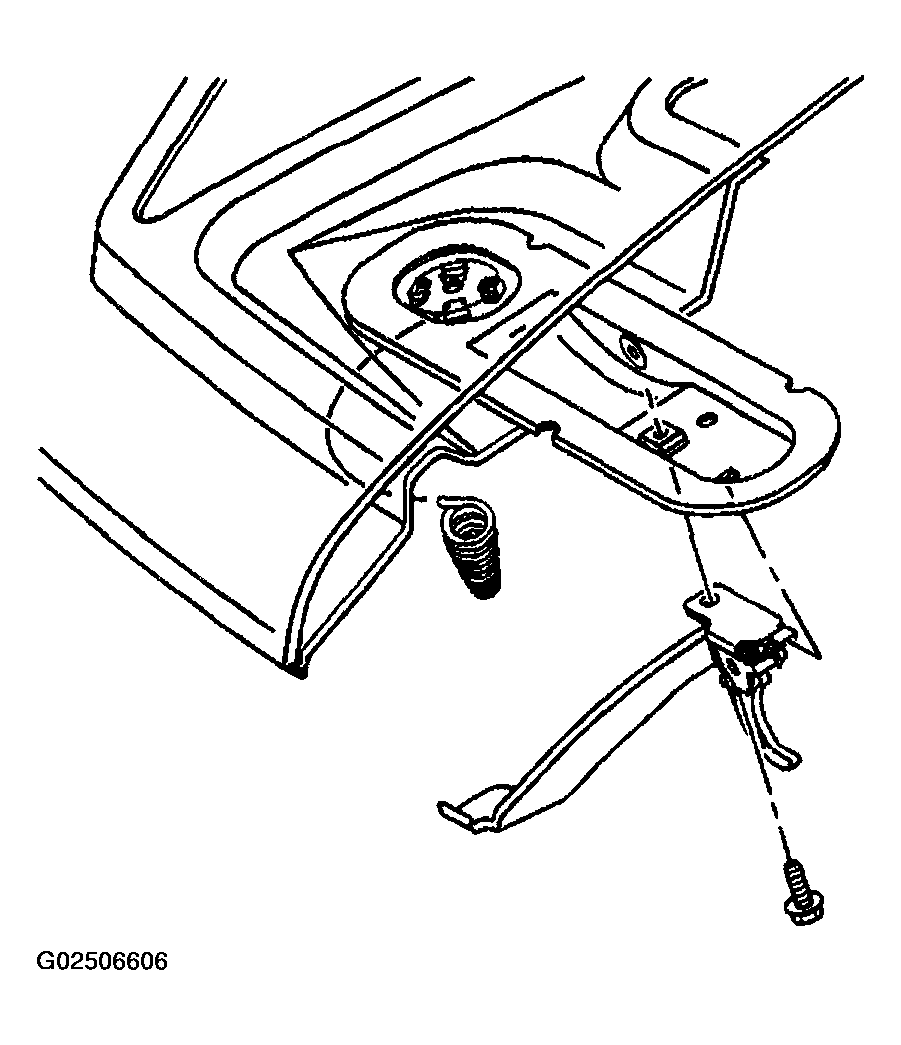

    3. Fig 1: Installing Secondary Hood Latch
    G02506606Courtesy of GENERAL MOTORS CORP.
