Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the cable from the primary latch with the following procedure:
    1. Use a suitable tool to pry the cable clip open to allow removal of the cable.
    2. Pry the cable housing from the latch.
  2. Remove the cable from the fasteners on the radiator support.

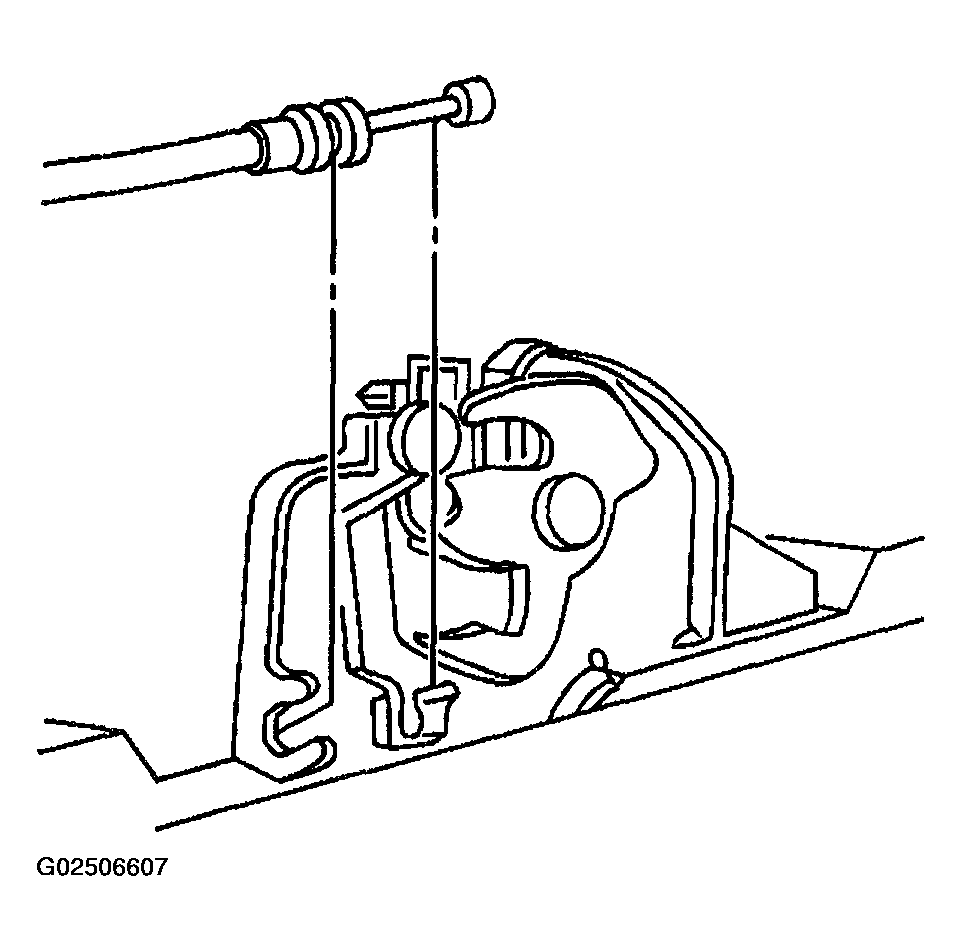

    3. Fig 1: Removing Release Cable At Hood Latch
    G02506607Courtesy of GENERAL MOTORS CORP.
  3. Remove the cable grommet from the cowl by gently pulling on the grommet.
  4. Disconnect the cable from the cowl.
  5. Remove the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .

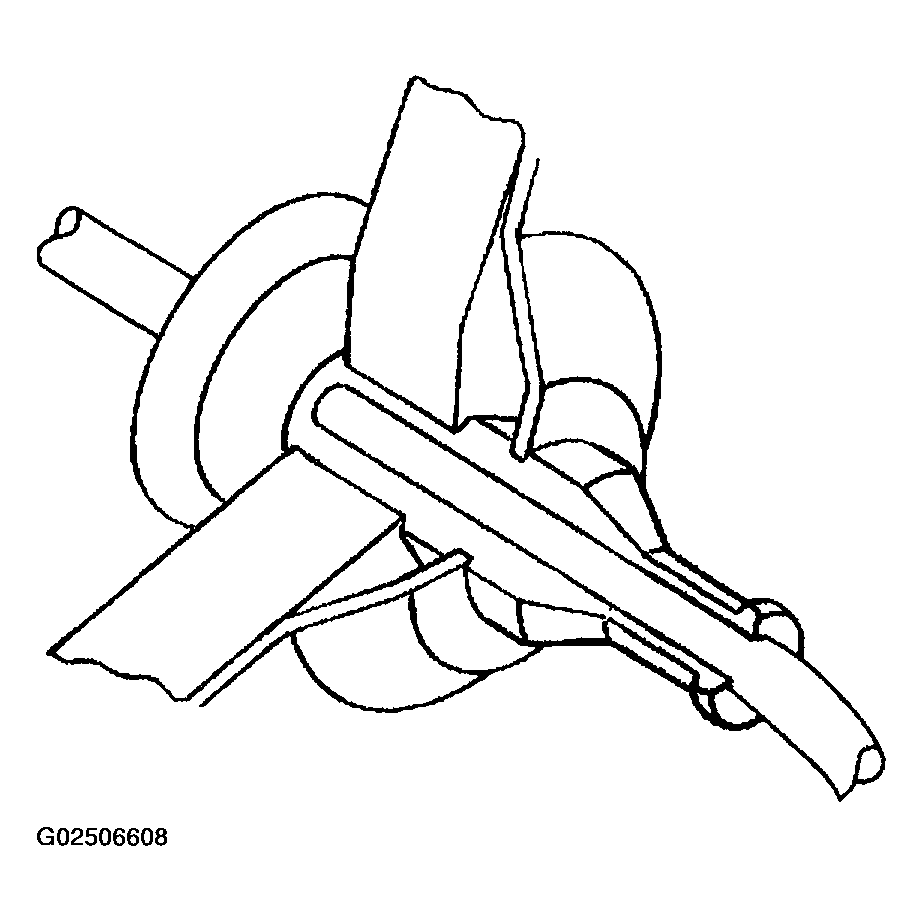

    6. Fig 2: Removing Cable Grommet From Cowl
    G02506608Courtesy of GENERAL MOTORS CORP.
  6. Pull the cable through the cowl in order to remove the screws that retain the cable assembly to the cowl side panel.
    7. Fig 3: Removing Screws Retaining Cable Assembly At Cowl Side Panel
    G02506609Courtesy of GENERAL MOTORS CORP.
