Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Route the cable through the front of the cowl.

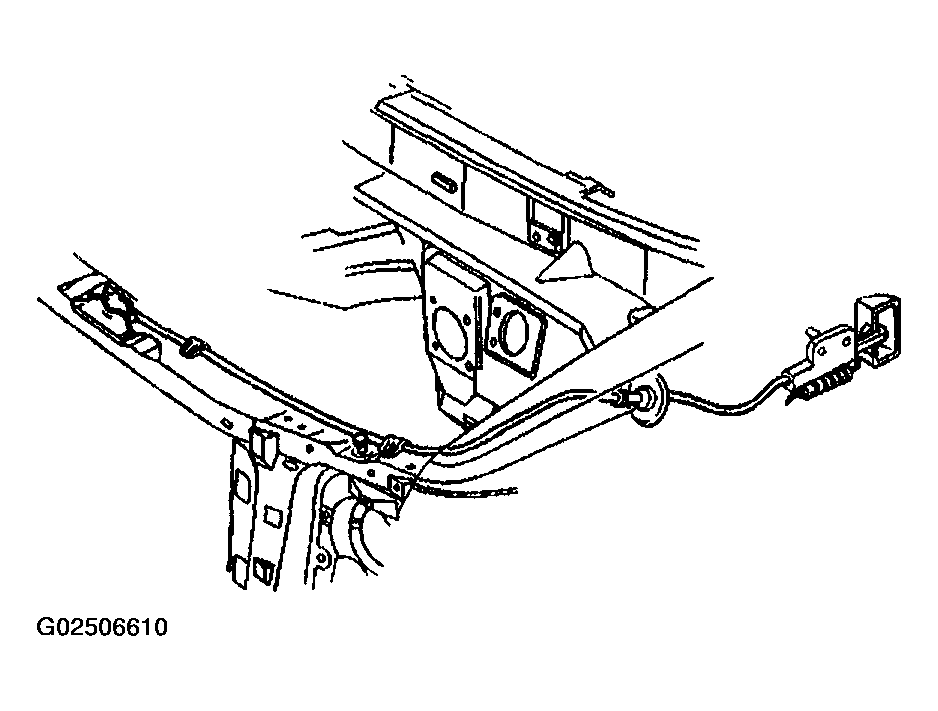

    2. Fig 1: Routing Cable Through Front Of Cowl
    G02506610Courtesy of GENERAL MOTORS CORP.
  2. Install the screws that retain the cable to cowl side panel. Tighten:  Tighten the screws to 2 N.m (18 in. lb.).
  3. Install the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
    Fig 2: Installing Screws Retaining Cable Assembly At Cowl Side Panel
    G02506611Courtesy of GENERAL MOTORS CORP.
  4. Pull the cable assembly from the front of the cowl until the grommet is seated.
  5. Connect the cable to the fasteners in the radiator support.

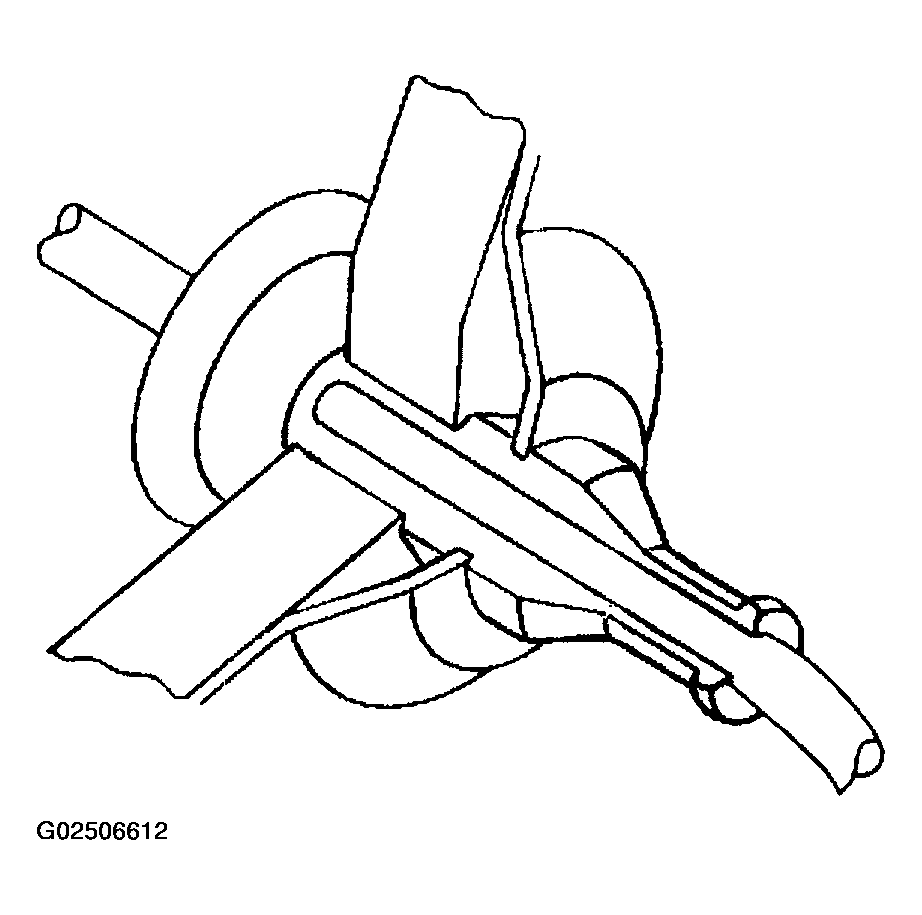

    6. Fig 3: Installing Cable Grommet Through Cowl
    G02506612Courtesy of GENERAL MOTORS CORP.
  6. Use a suitable tool in order to clamp the cable clip and connect the cable to the primary latch.
  7. Verify that the hood is operating correctly.

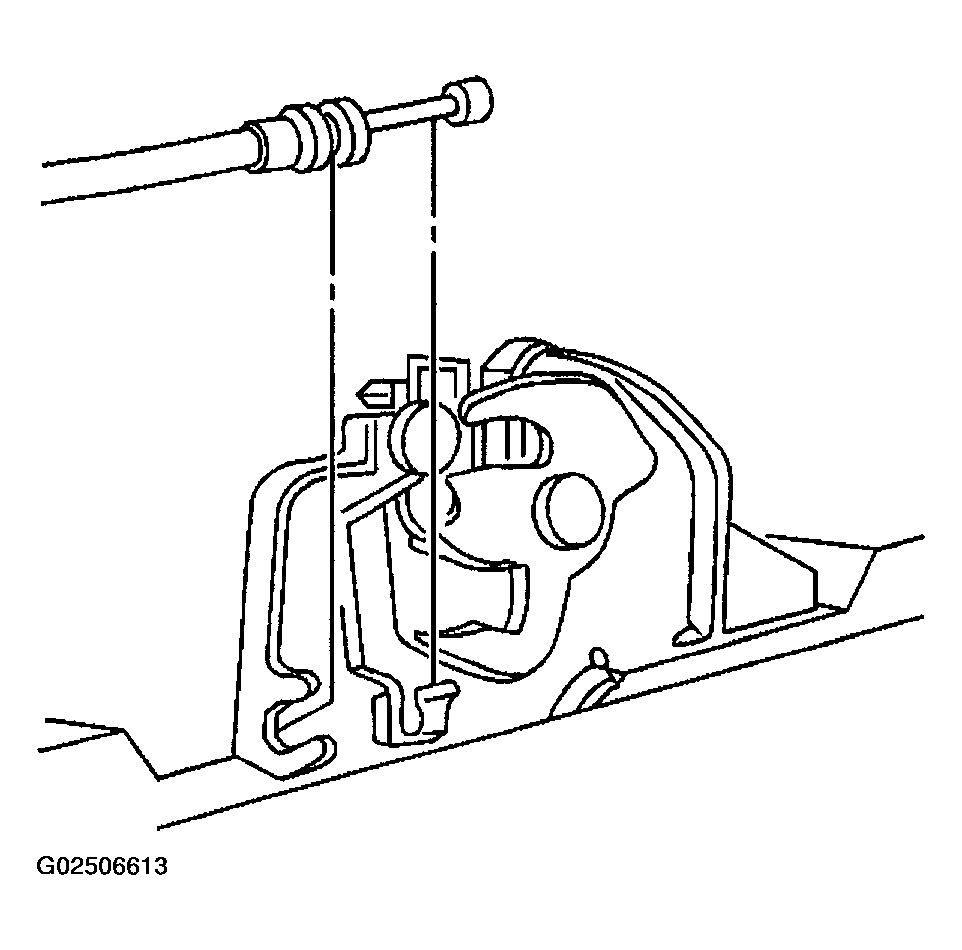

    8. Fig 4: Installing Release Cable At Hood Latch
    G02506613Courtesy of GENERAL MOTORS CORP.
