Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the hood insulator push-in retainers by using J 38778.
  3. Remove the insulator from the hood.

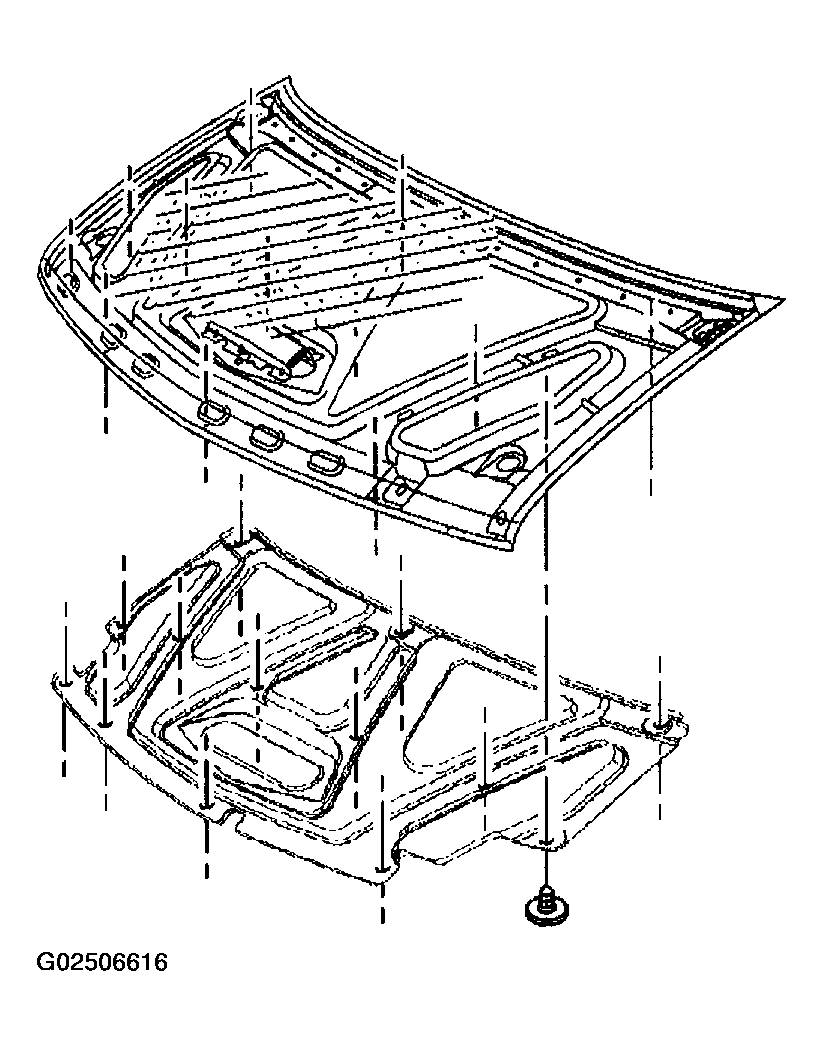

  4. Fig 1: Removing Hood Insulator
    G02506616Courtesy of GENERAL MOTORS CORP.
