Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood insulator to the hood.
  2. Install the hood insulator retainers into the hood by pushing in the retainers.

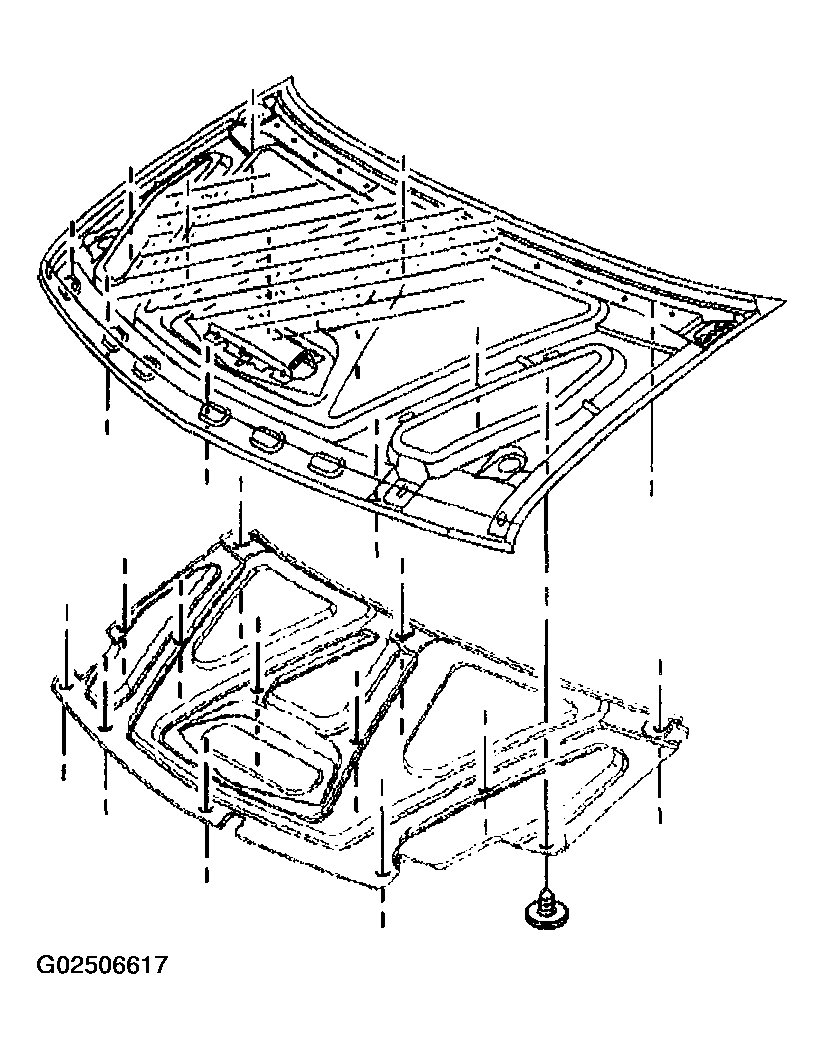

  3. Fig 1: Installing Hood Insulator
    G02506617Courtesy of GENERAL MOTORS CORP.
