Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Push the support rod retainer into place.
  2. Insert the retainer tab into the slot in order to install the support rod to the vehicle.
  3. Install the support rod-to-radiator support bolt. Tighten:  Tighten the support rod to radiator support bolts to 15 N.m (11 ft. lb.).
  4. Lower the hood.

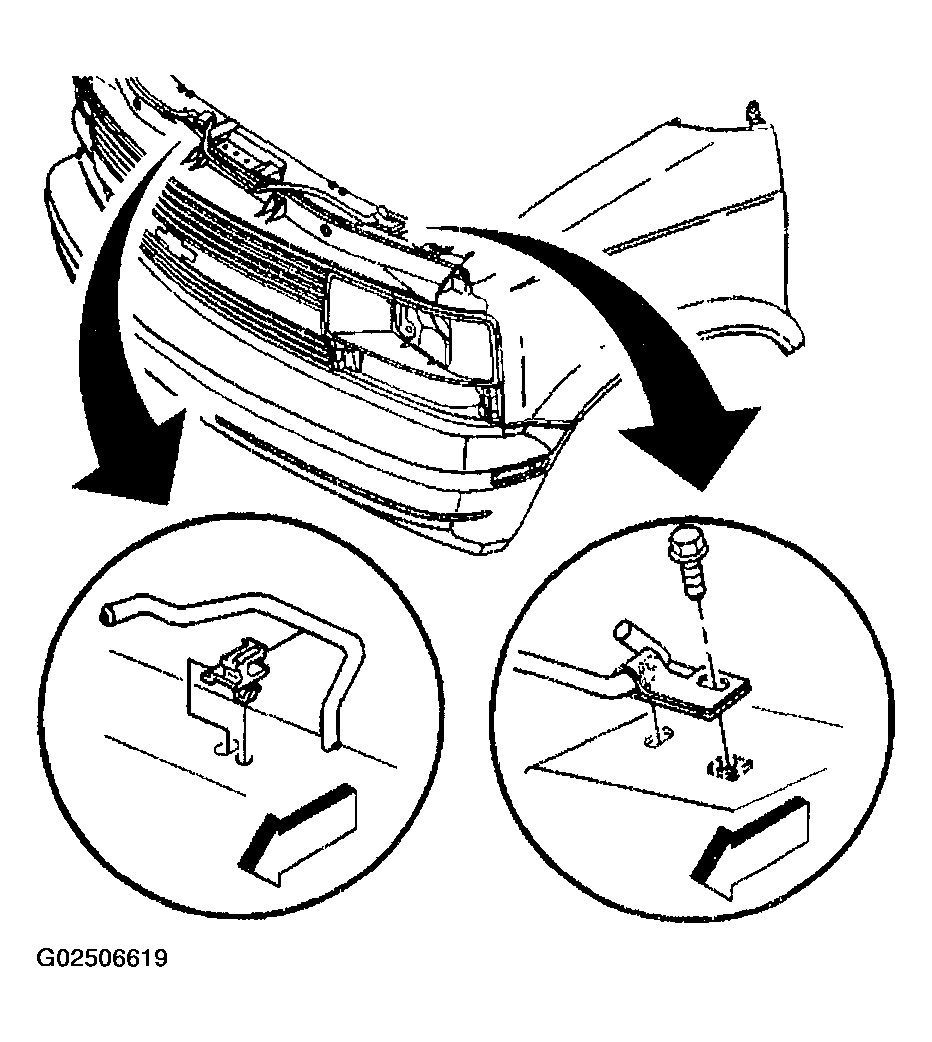

    5. Fig 1: Installing Hood Hold-Open Rod
    G02506619Courtesy of GENERAL MOTORS CORP.
