Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Install the hinge to the hood with the aid of an assistant.
  2. Align the new hinge according to the marks made before the old hinge was removed.
  3. Install the hood to hinge bolts. Tighten:  Tighten the bolts to 25 N.m (18 ft. lb.).

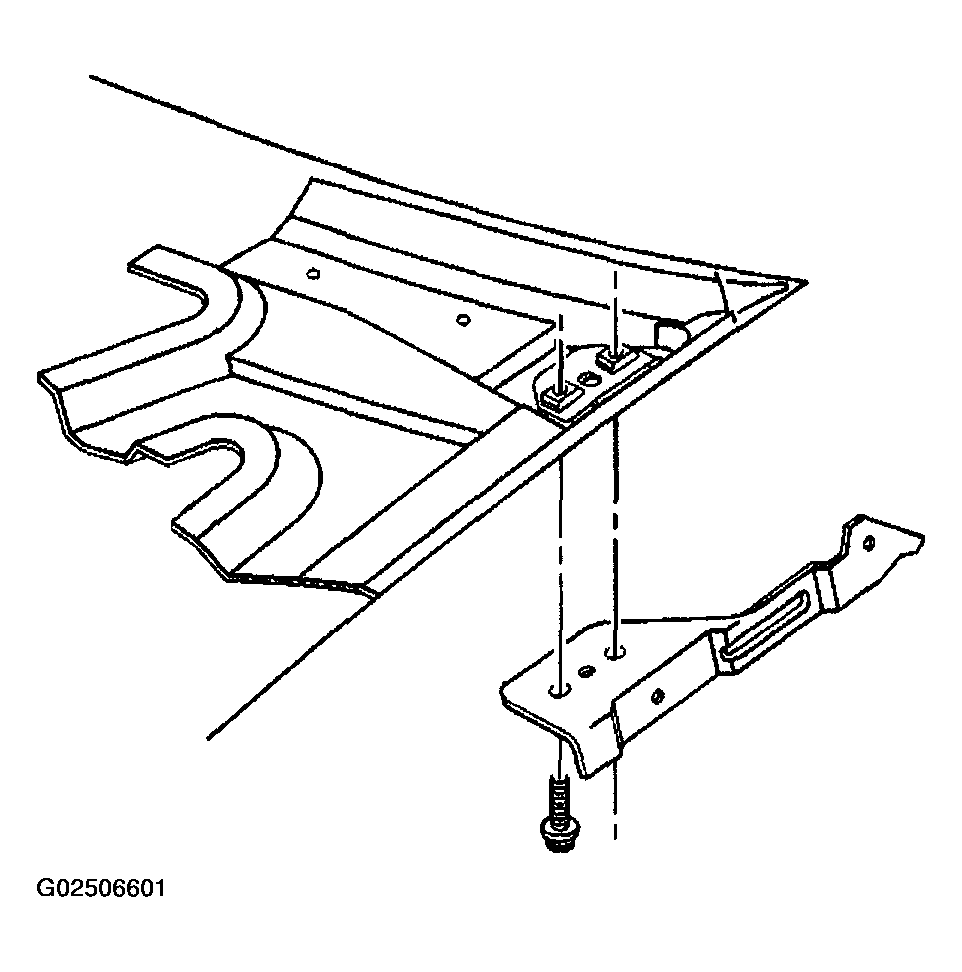

    4. Fig 1: Installing Hinge To Hood
    G02506601Courtesy of GENERAL MOTORS CORP.
  4. Install the hinge to fender nut.
  5. Install the hinge to fender bolt. Tighten:  Tighten the bolt to 25 N.m (18 ft. lb.).
  6. Lower the hood.
  7. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement  .

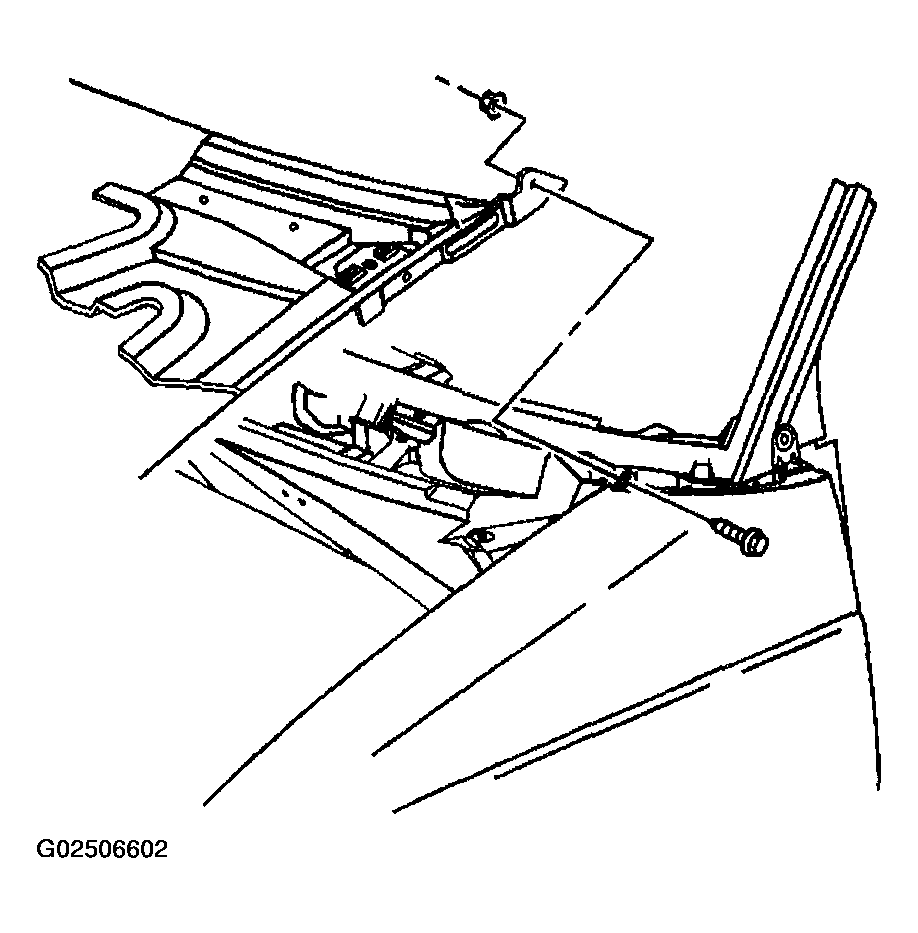

    8. Fig 2: Installing Hinge-To-Hood Bolts
    G02506602Courtesy of GENERAL MOTORS CORP.
