Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the height of the hood adjust front bumper before removing in order to aid in adjustment.
  2. Rotate the hood adjust front bumper counterclockwise.

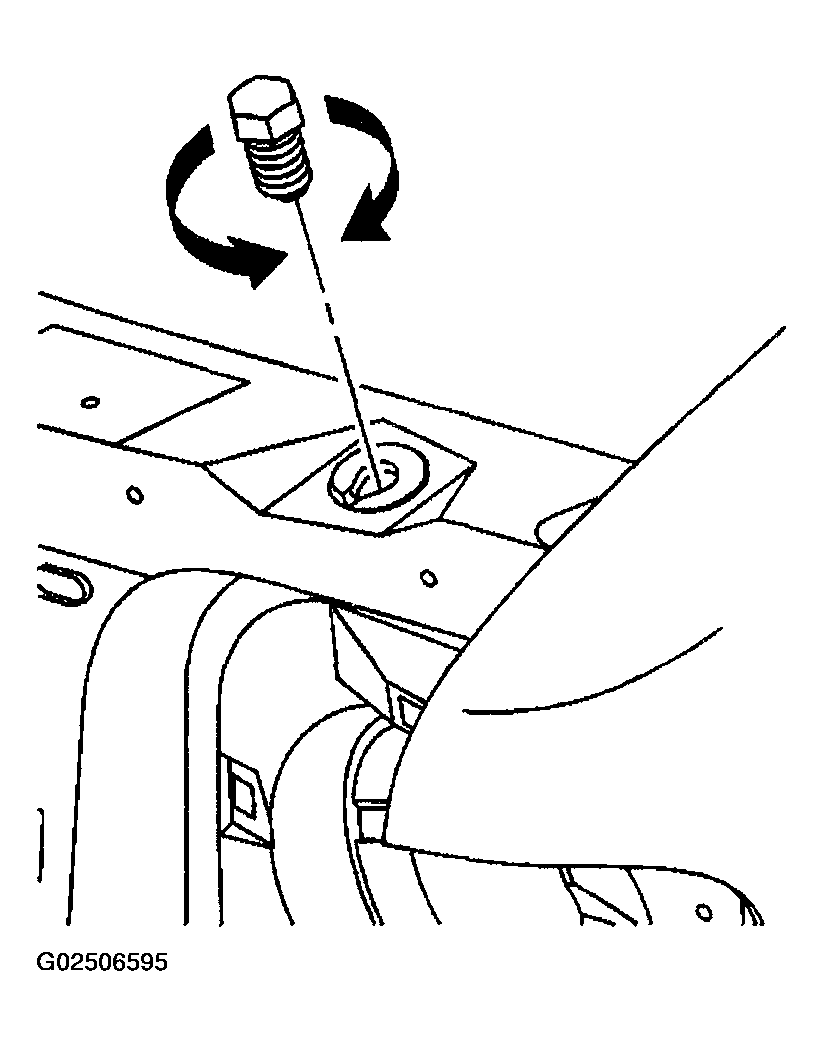

  3. Fig 1: Removing Hood Bumper
    G02506595Courtesy of GENERAL MOTORS CORP.
