Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the hood adjust front bumpers clockwise until the hood adjust front bumper is at the same height as measured before removal.
  2. Check the alignment of the hood panel assembly. Ensure the top of the hood is flush with the fenders and parallel to the grille.
  3. Rotate the bumper clockwise or counterclockwise in order to align the hood.

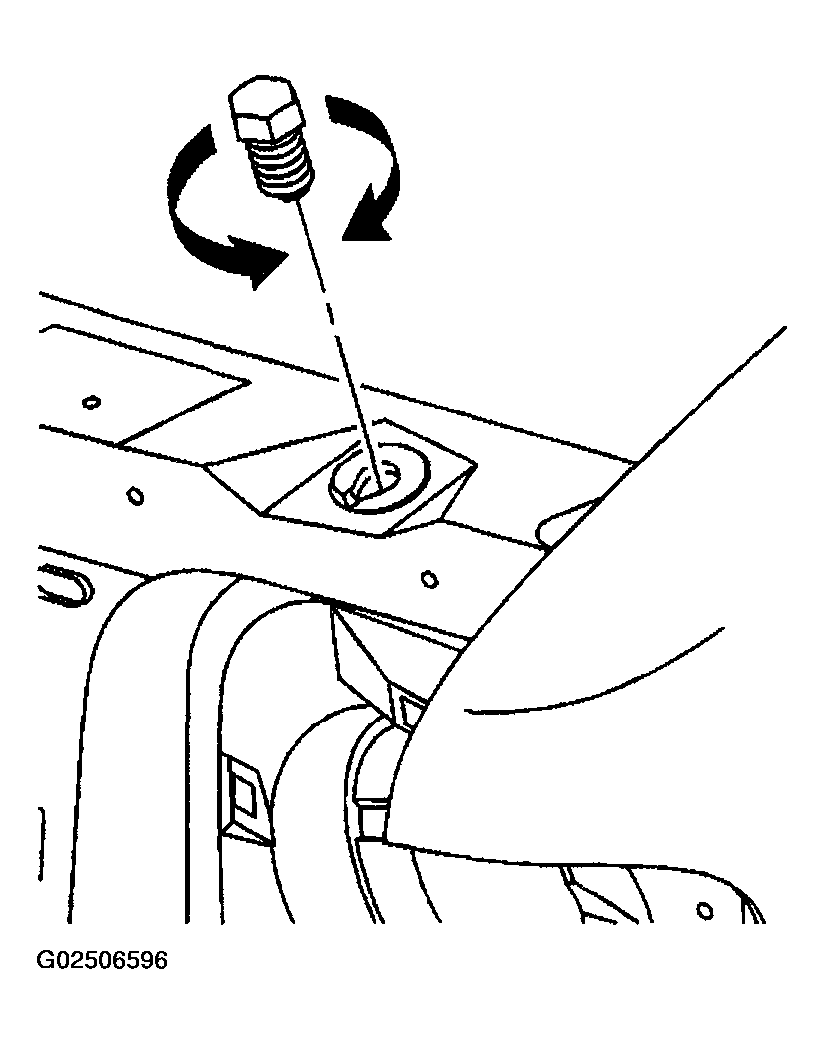

    4. Fig 1: Installing Hood Bumper
    G02506596Courtesy of GENERAL MOTORS CORP.
