Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the impact bar. Refer to IMPACT BAR REPLACEMENT -- FRONT BUMPER in Bumpers.
  2. Raise and support the hood.
  3. Remove the screws retaining the windshield frame filler panel.
  4. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  5. Remove the hood to fender nut and bolt.
  6. Remove the front rocker panel cladding. Refer to CLADDING REPLACEMENT - LEFT ROCKER PANEL , or to CLADDING REPLACEMENT - RIGHT ROCKER PANEL in Exterior Trim.

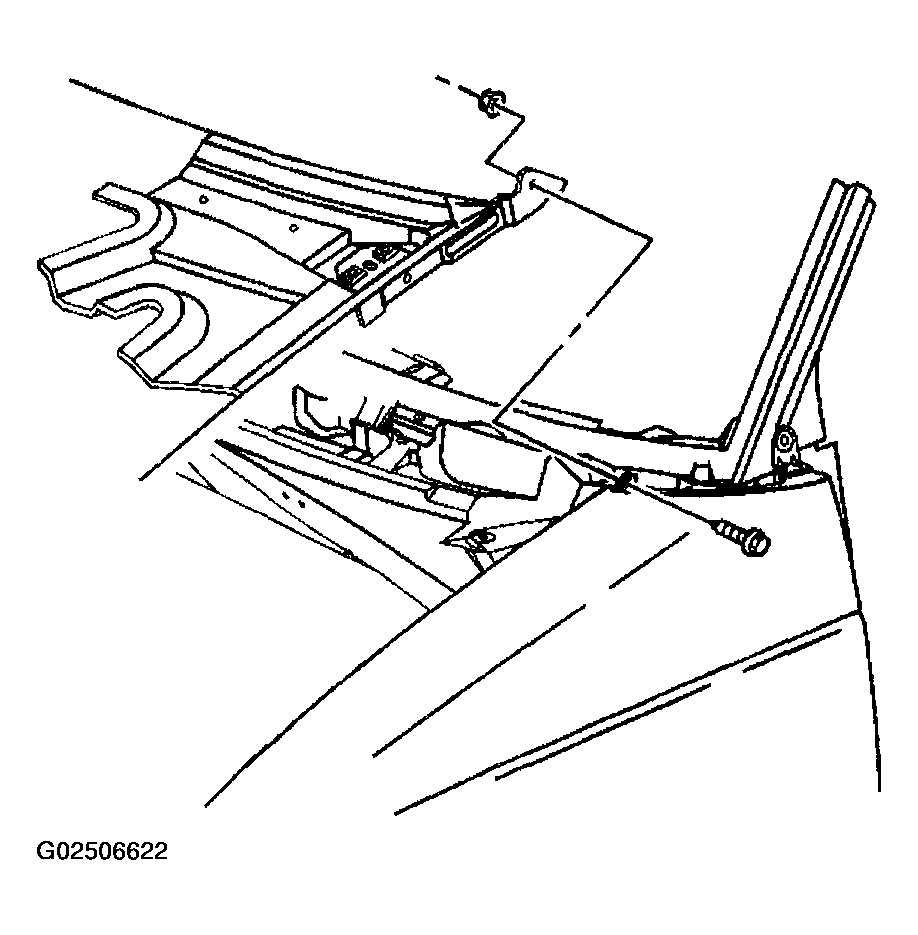

    7. Fig 1: Removing Screws Retaining Windshield Frame Filler Panel
    G02506622Courtesy of GENERAL MOTORS CORP.
  7. Remove the front wheel house extension. Refer to Wheelhouse Extension Replacement .
  8. Remove the fender to the body bolts.
  9. Remove the fender from the body.

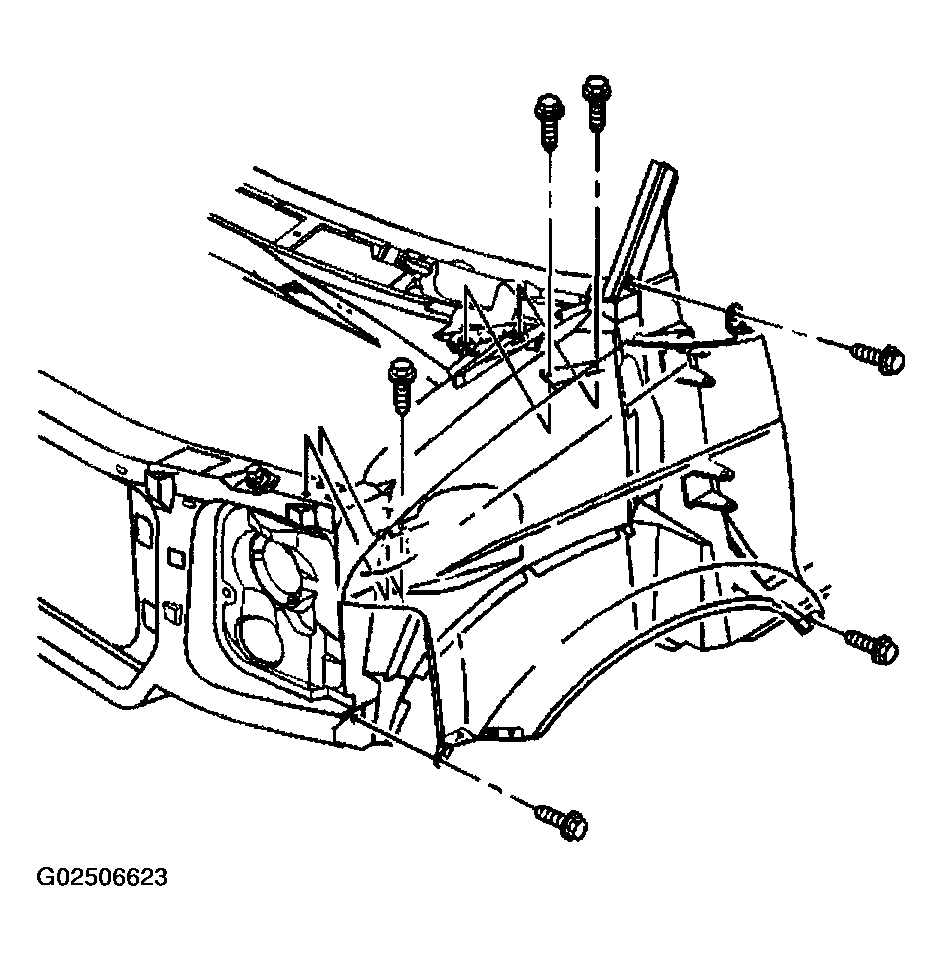

    10. Fig 2: Removing Fender From Body
    G02506623Courtesy of GENERAL MOTORS CORP.
