Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Unhook the power steering cooler lines (2) from the air baffle.
  3. Remove the push-in retainers (4) on the right and left sides of the air baffle.
  4. Remove the screws (3) that attaches the air baffle to the radiator support.
  5. Pull the air baffle rearward in order to release the air baffle from the radiator support.
  6. Remove the air baffle (1).

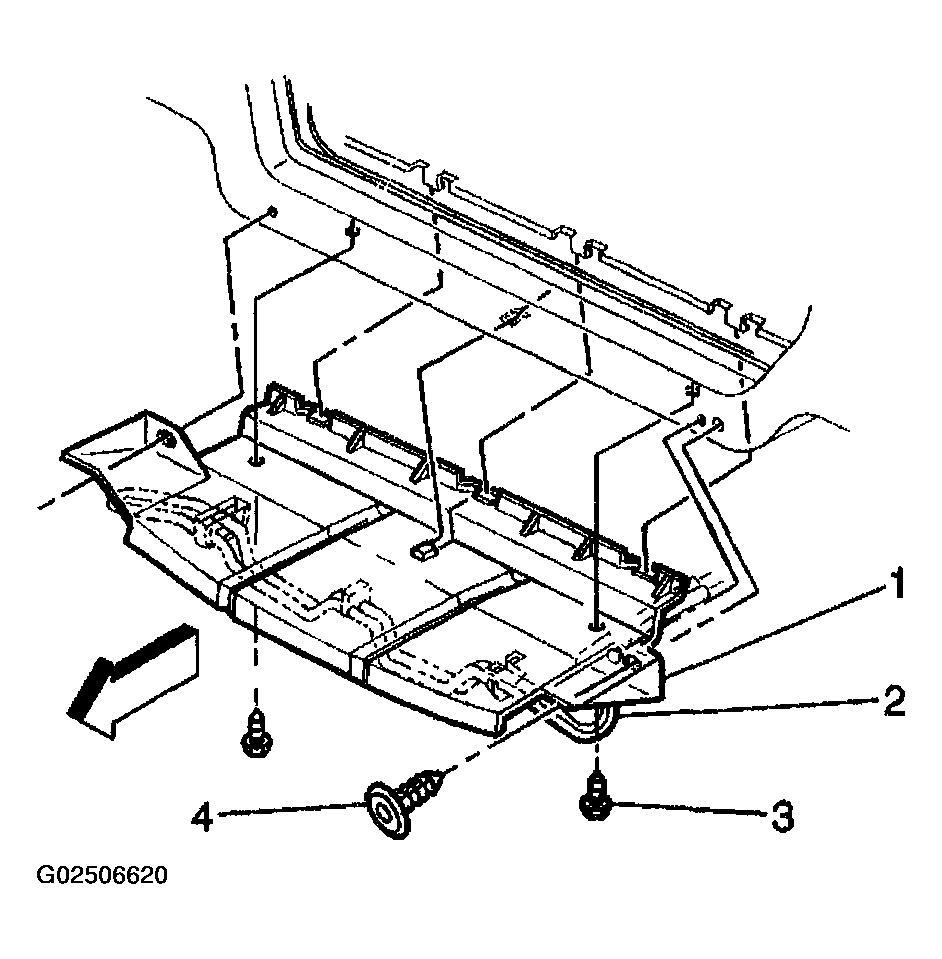

    7. Fig 1: Removing Radiator Air Intake Baffle
    G02506620Courtesy of GENERAL MOTORS CORP.
