Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Position the air baffle (1) into the radiator support.
  2. Align the tabs of the air baffle to the radiator support before installing the screws.
  3. Install the screws (3) that attach the air baffle to the radiator support. Tighten:  Tighten the screws that attaches the air baffle to the radiator support to 2 N.m (18 in. lb.).
  4. Remove the push clips (4) on the right and left sides of the air baffle.
  5. Hook the power steering cooler lines (2) to the air baffle.
  6. Lower the vehicle.

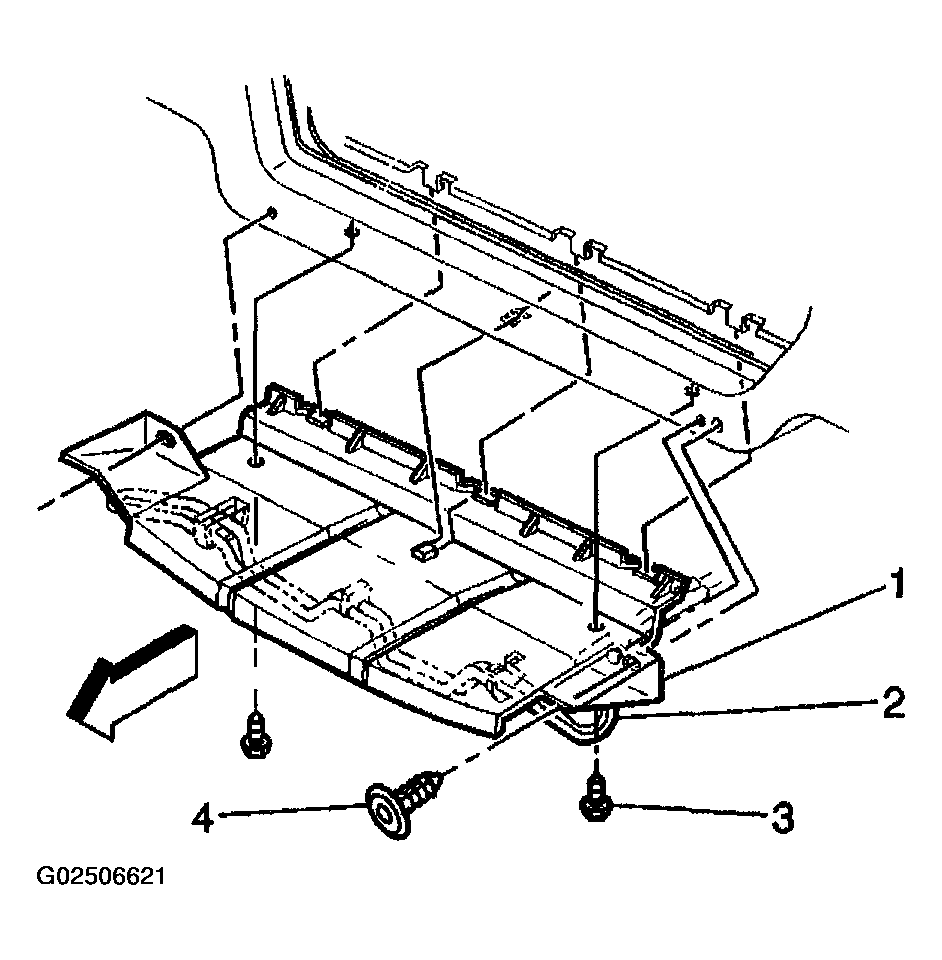

    7. Fig 1: Installing Radiator Air Intake Baffle
    G02506621Courtesy of GENERAL MOTORS CORP.
