Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the windshield washer hoses from the windshield wiper arm.
  2. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  3. Remove the antenna. Refer to FIXED ANTENNA REPLACEMENT in Entertainment.
  4. Remove the air inlet grille panel to cowl screws.
  5. Remove the air inlet grille panel from the vehicle.

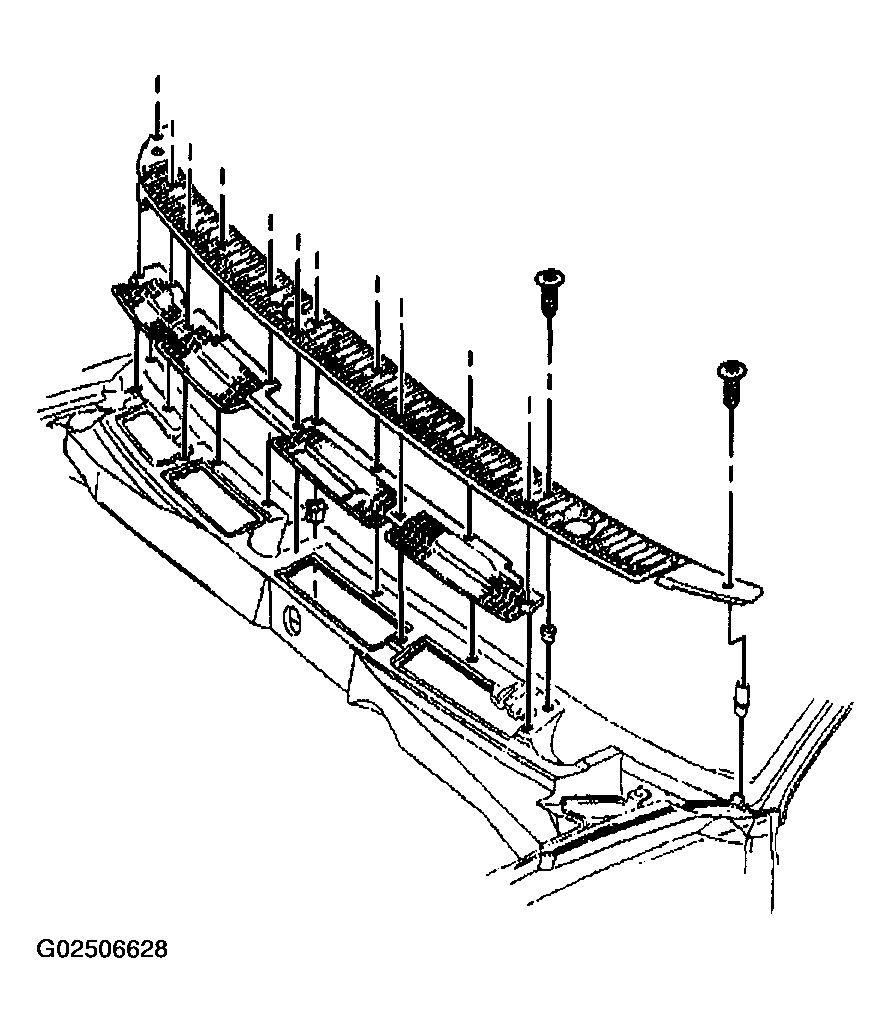

    6. Fig 1: Removing Upper Air Inlet Grille Panel
    G02506628Courtesy of GENERAL MOTORS CORP.
