Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  1. Install the air inlet grille panel to the vehicle.
  2. Install the air inlet grille panel to cowl screws. Tighten:  Tighten the air inlet grille panel to cowl screws 2 N.m (18 in. lb.).
  3. Install the antenna. Refer to FIXED ANTENNA REPLACEMENT in Entertainment.
  4. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.

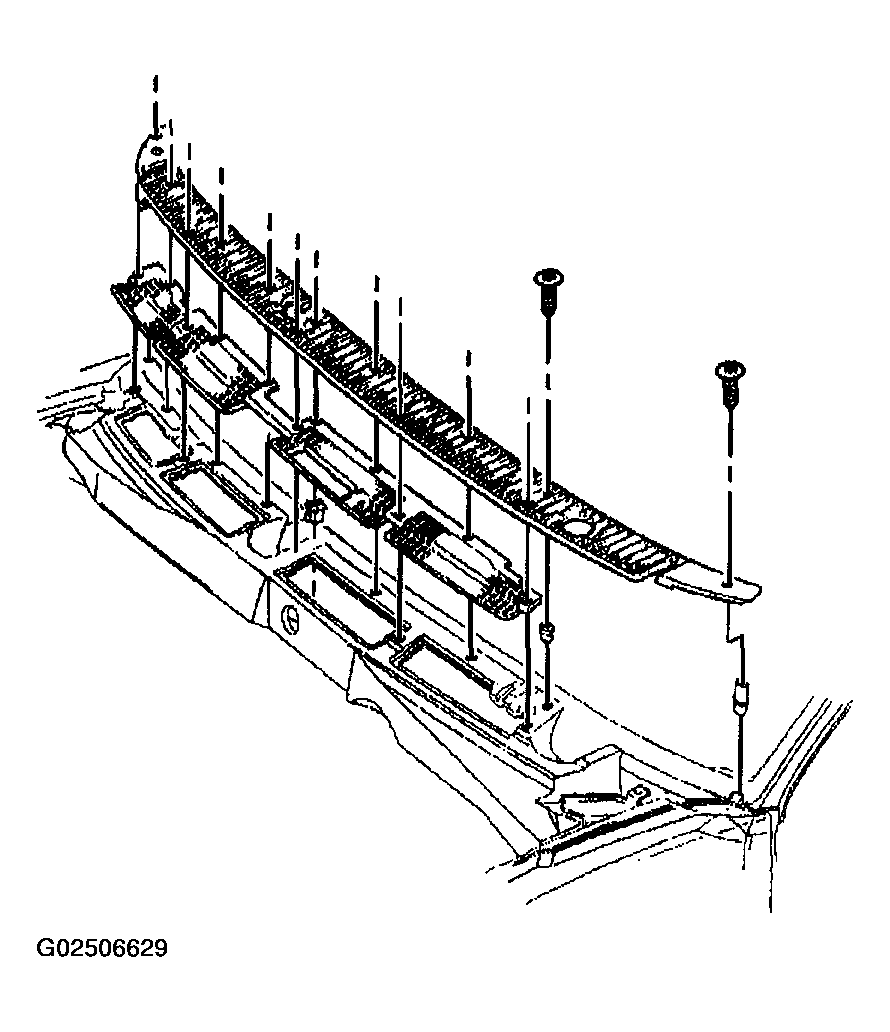

    5. Fig 1: Installing Upper Air Inlet Grille Panel
    G02506629Courtesy of GENERAL MOTORS CORP.
