Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

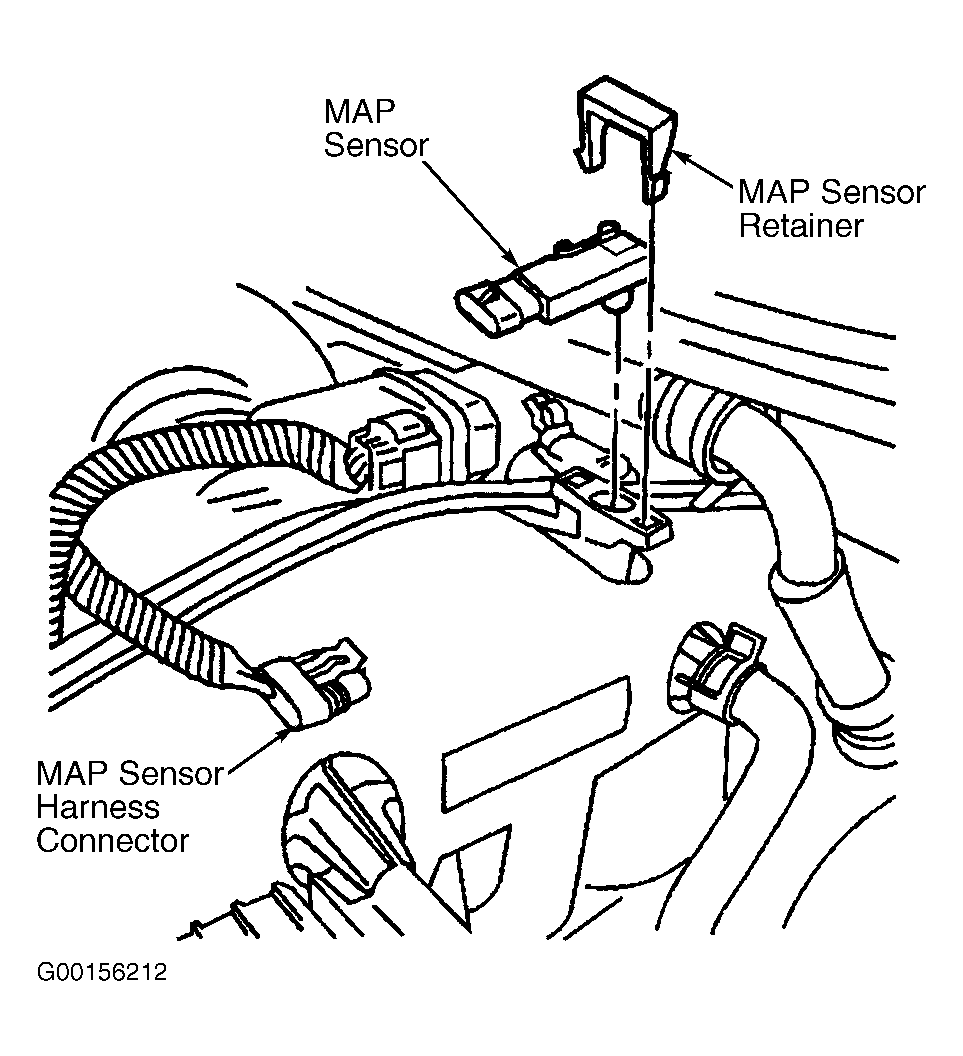

Turn ignition off. Disconnect Manifold Absolute Pressure (MAP) sensor harness connector. See Fig 1. MAP sensor is located on top left of engine. Press MAP sensor retainer locking tabs inward and pull upward to remove retainer from intake manifold. Remove MAP sensor from intake manifold. To install, reverse removal procedure. Replace MAP sensor seal as necessary.
