Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the swing out window.
  2. Pull the weatherstrip from the pinch weld flange.
  3. Grasp the weatherstrip at the lower corner and pull up and away from the pinch-weld.

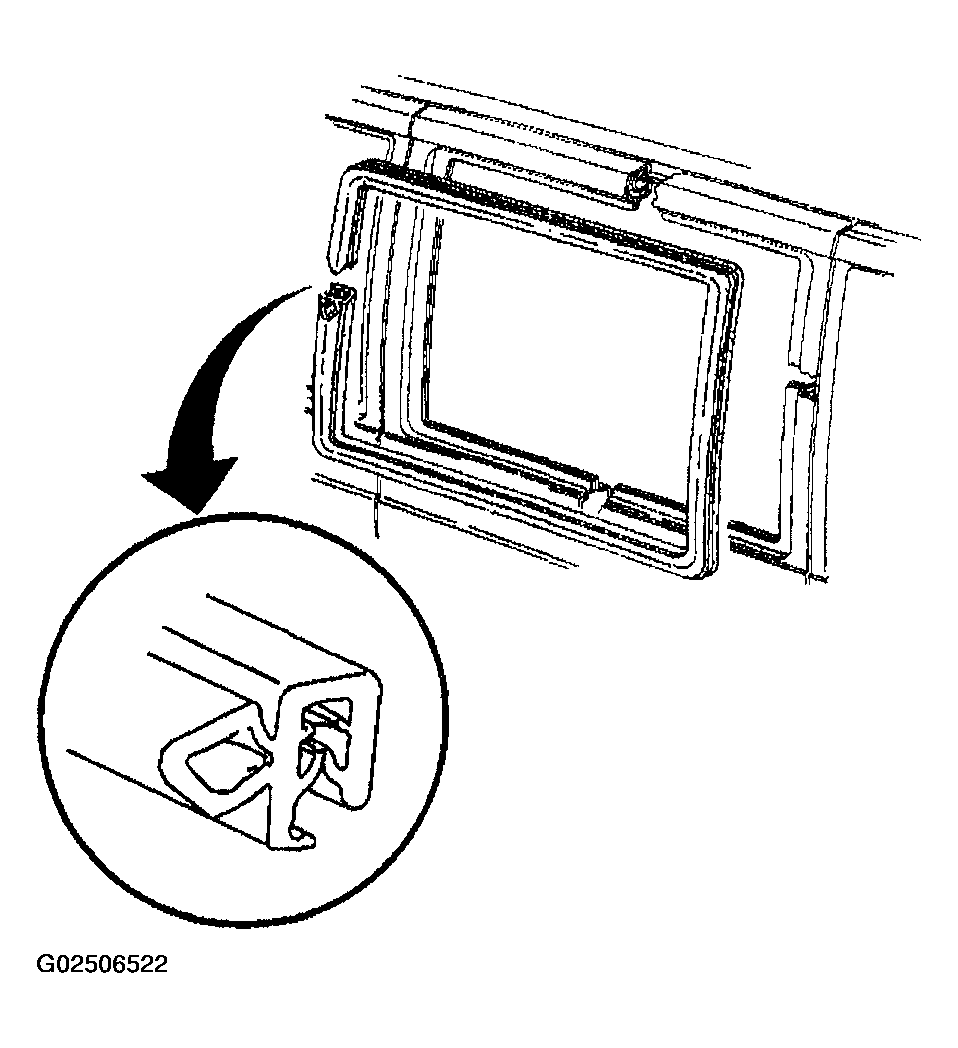

    Fig 1: Removing Weatherstrip - Swing Out Window
    G02506522Courtesy of GENERAL MOTORS CORP.
