Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the instrument panel cluster trim plate.
  2. Install the accessory switch and the headlamp switch to the instrument cluster trim plate by snapping into place.
  3. Install the headlamp switch and accessory switch electrical connectors.
  4. Install the instrument panel cluster trim plate by aligning the retainers to the opening in the instrument panel and push in place until fully seated.
  5. Move gear selector into PARK position, turn the ignition to the OFF position and release the park brake.

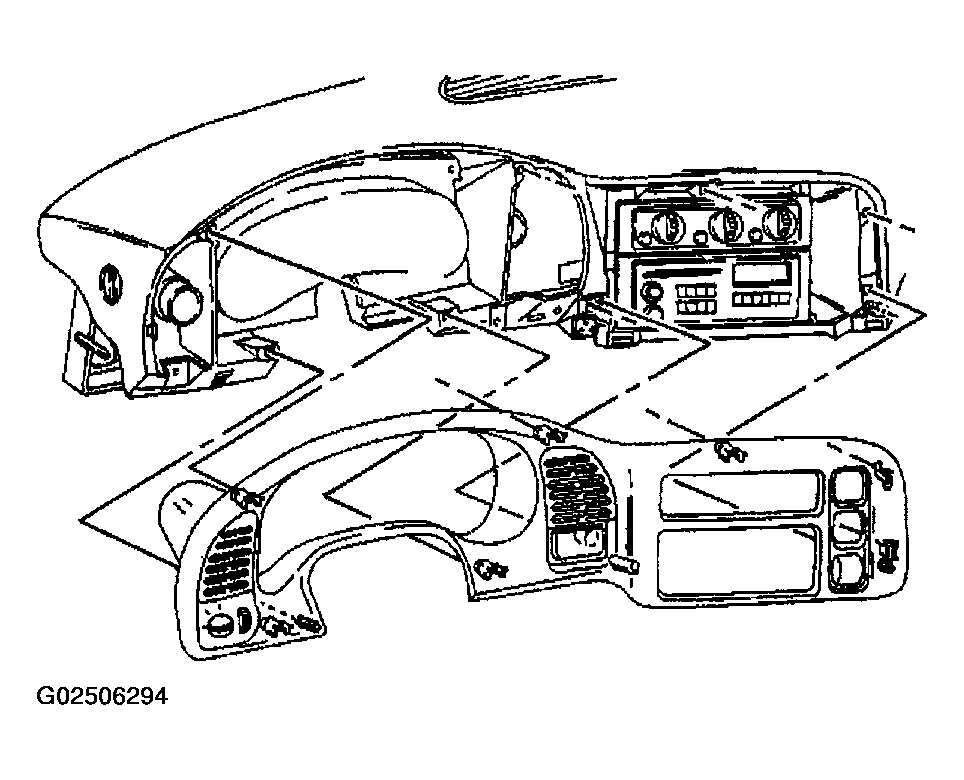

    6. Fig 1: Removing & Installing Instrument Panel Cluster Trim Panel
    G02506294Courtesy of GENERAL MOTORS CORP.
