Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the multifunction alarm assembly to the convenience center.
  2. Align the retaining tab.
  3. Press the tab in place

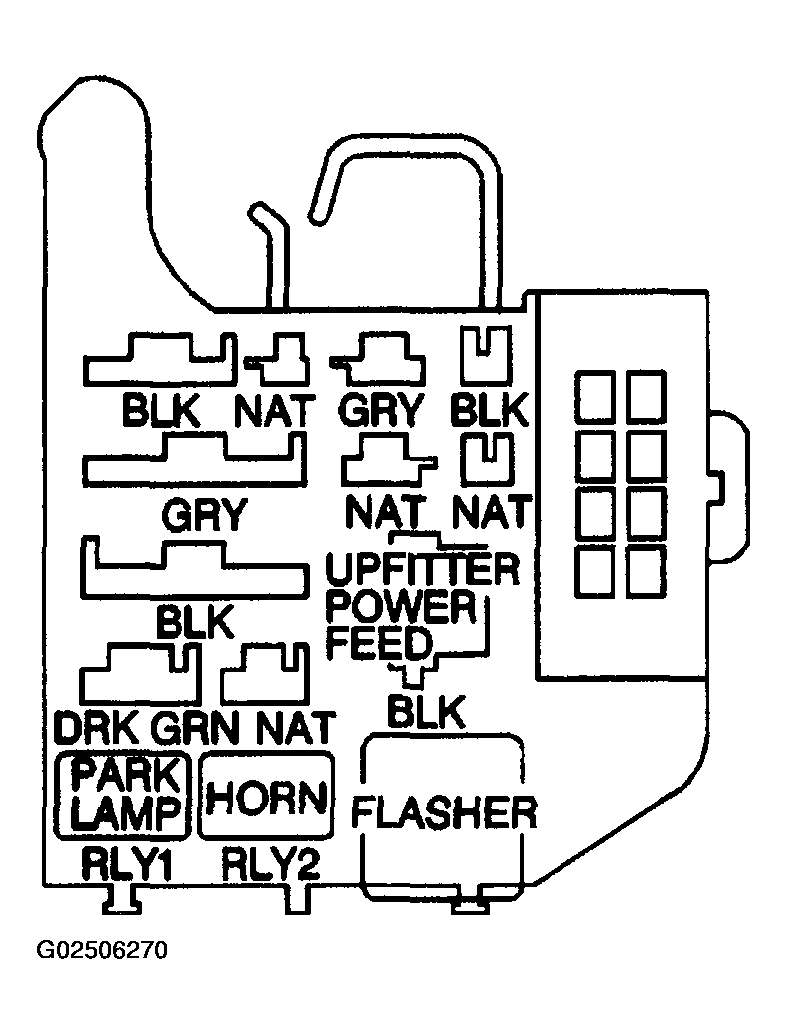

    4. Fig 1: Identifying Convenience Center
    G02506270Courtesy of GENERAL MOTORS CORP.
