Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel extension. Refer to IP Extension Replacement  .
  2. Remove the screws that retain the knee bolster to the instrument panel.
  3. Pull back on the knee bolster in order to release the retainers from the instrument panel.
  4. Remove the knee bolster.

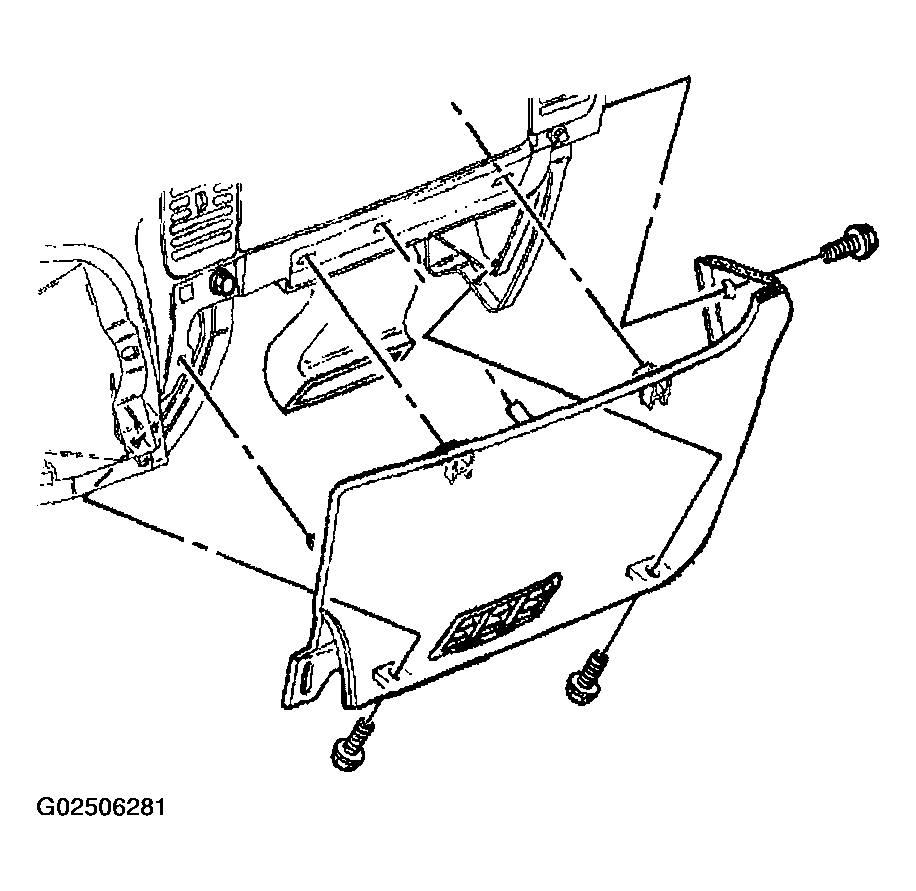

    5. Fig 1: Removing & Installing Right Knee Bolster
    G02506281Courtesy of GENERAL MOTORS CORP.
