Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster.
  2. Install the knee bolster to the instrument panel:
    1. Align the retainers.
    2. Press the panel into place.
    3. NOTE: Refer to FASTENER NOTICE .
  3. Install the screws that retain the bolster to the instrument panel. Tighten:  Tighten the knee bolster screws to 8 N.m (71 lb in).
  4. Install the instrument panel extension. Refer to IP Extension Replacement  .

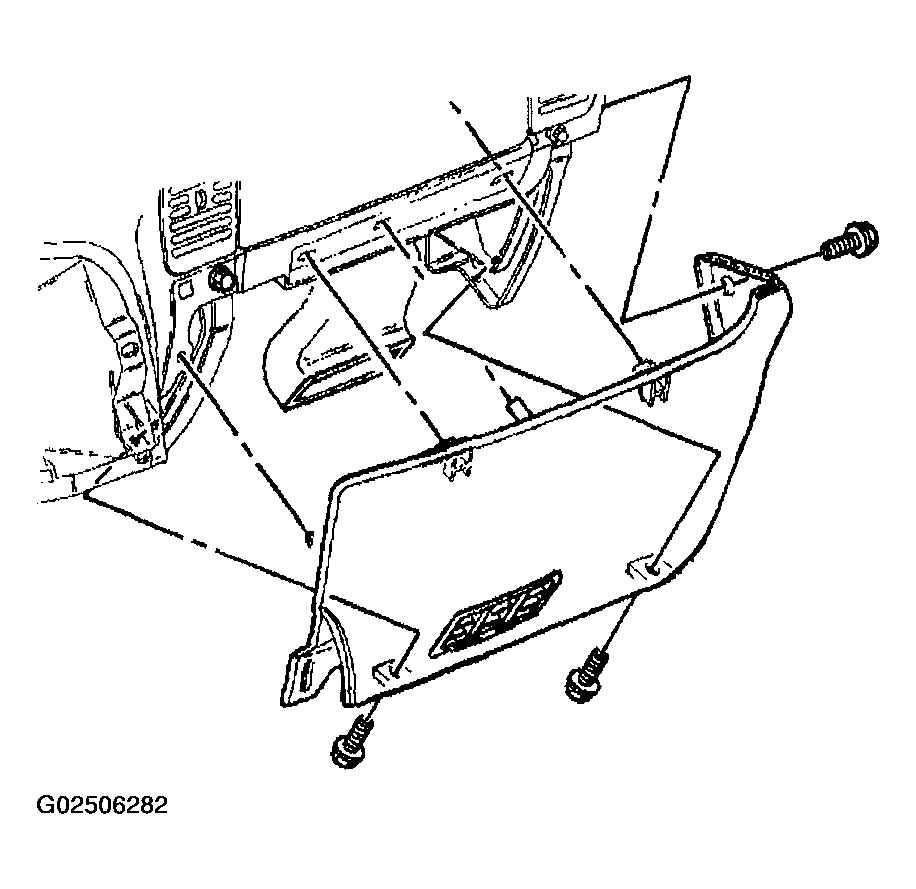

    5. Fig 1: Removing & Installing Right Knee Bolster
    G02506282Courtesy of GENERAL MOTORS CORP.
