Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the bolster to the instrument panel.
  2. Pull back on the bolster in order to release the two retainers and remove the bolster.
  3. Remove the parking brake release lever from the knee bolster.

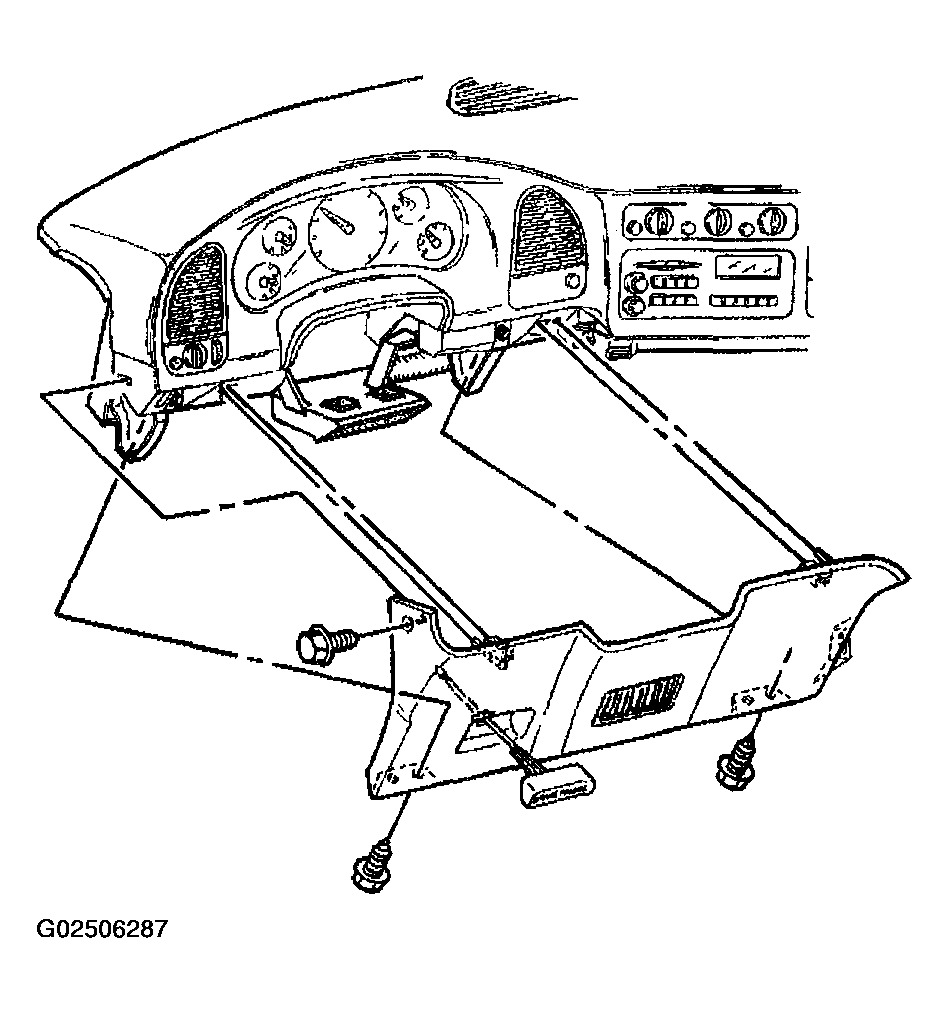

    4. Fig 1: Removing & Installing Left Knee Bolster
    G02506287Courtesy of GENERAL MOTORS CORP.
