Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the parking brake release lever to the knee bolster.
  2. Install the knee bolster:
    1. Align the retainers.
    2. Press the panel into place.
    3. NOTE: Refer to FASTENER NOTICE .
  3. Install the screws that retain the knee bolster to the instrument panel. Tighten:  Tighten the knee bolster screws to 8 N.m (71 lb in).

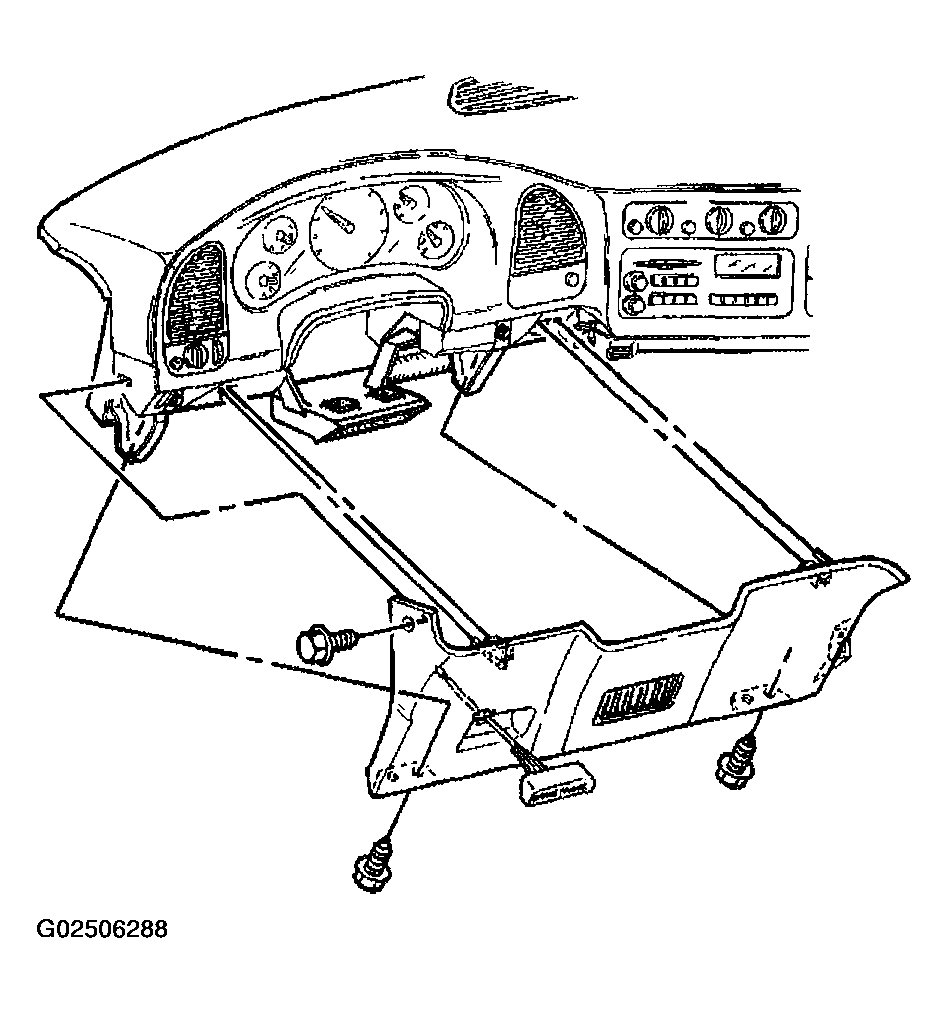

    4. Fig 1: Removing & Installing Left Knee Bolster
    G02506288Courtesy of GENERAL MOTORS CORP.
