Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel extension. Refer to IP Extension Replacement  .
  2. Remove the driver's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT  .
  3. Remove the nuts that retain the knee bolster deflector to the instrument panel carrier.
  4. Remove the bolts that retain the knee bolster deflector to the instrument panel carrier.
  5. Remove the knee bolster deflector from the vehicle.

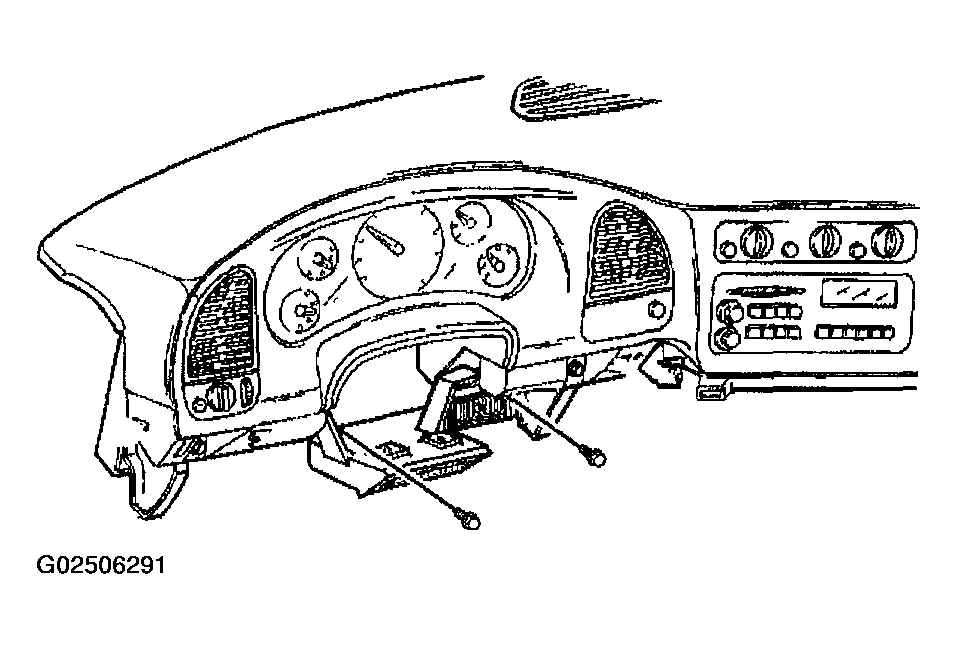

    6. Fig 1: Removing & Installing Left Knee Bolster Deflector
    G02506291Courtesy of GENERAL MOTORS CORP.
