Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the knee bolster deflector to the vehicle.
  2. Install the bolts that retain the knee bolster deflector to the instrument panel carrier. Tighten:  Tighten the bolts that retain the knee bolster deflector to the instrument panel carrier 10 N.m (89 lb in).
  3. Install the bolts that retain the knee bolster deflector to the instrument panel carrier. Tighten:  Tighten the nuts that retain the knee bolster deflector to the instrument panel carrier to 10 N.m (89 lb in).
  4. Install the driver's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT  .

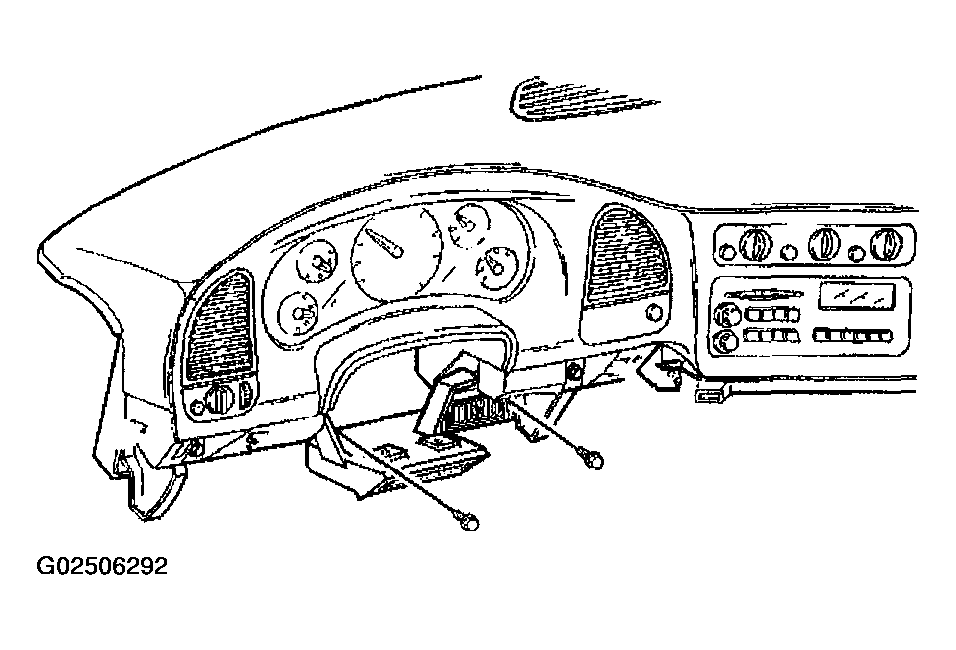

    Fig 1: Removing & Installing Left Knee Bolster Deflector
    G02506292Courtesy of GENERAL MOTORS CORP.
