Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not remove the instrument panel to replace right or right center knee bolster brackets.
  1. Remove the passenger's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .
  2. Roll the instrument panel down. Refer to IP Assembly Replacement  .
  3. Remove the knee bolster bracket right side screws.
  4. Remove the knee bolster bracket right side.

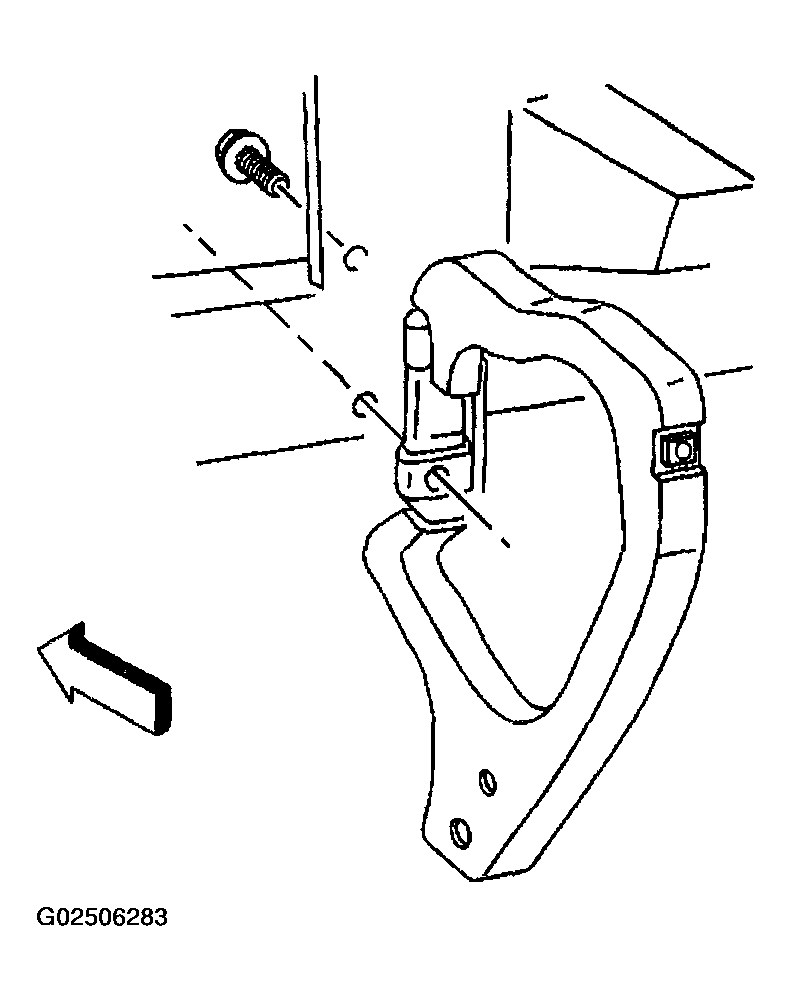

    5. Fig 1: Removing & Installing Knee Bolster Bracket Right Side
    G02506283Courtesy of GENERAL MOTORS CORP.
  5. Remove the knee bolster bracket right center screws.
  6. Remove the knee bolster bracket right center.

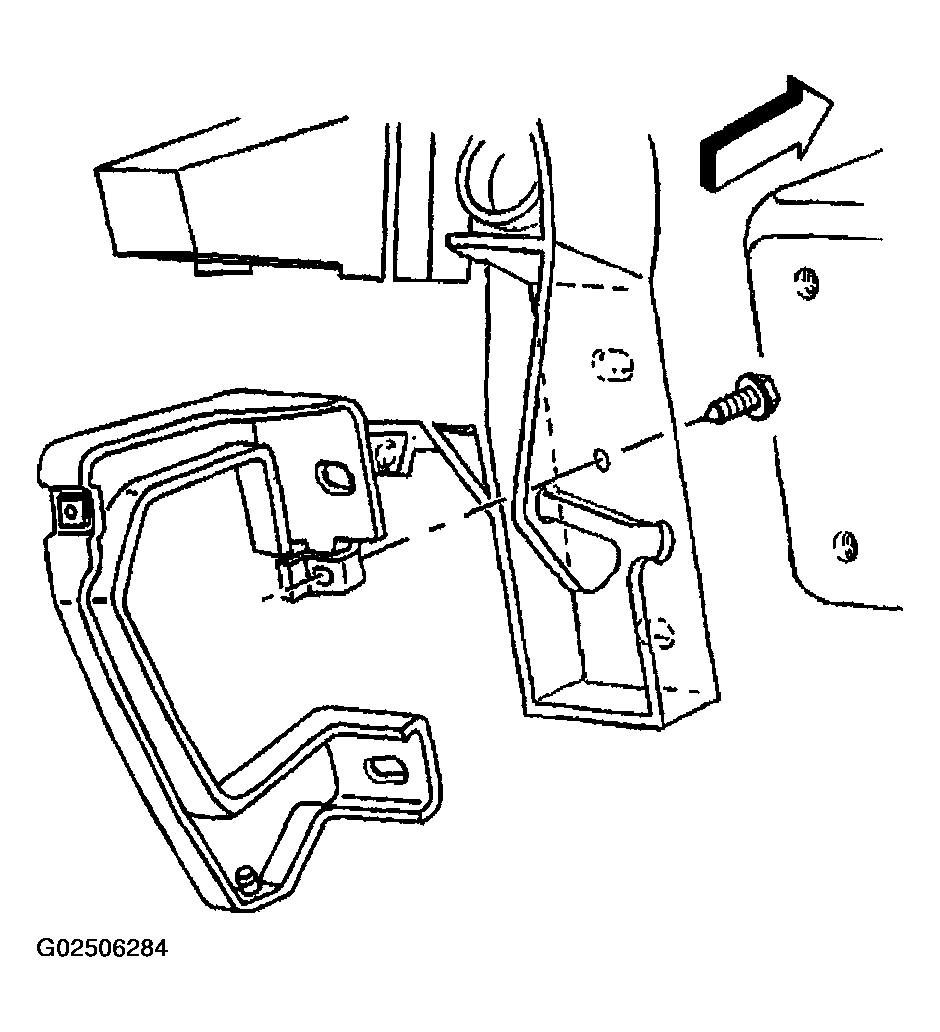

    7. Fig 2: Removing & Installing Knee Bolster Bracket Right Center
    G02506284Courtesy of GENERAL MOTORS CORP.
