Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster bracket right center.
  2. Install the knee bolster bracket right center screws. Tighten:  Tighten the knee bolster bracket right center screws to 8 N.m (71 lb in).

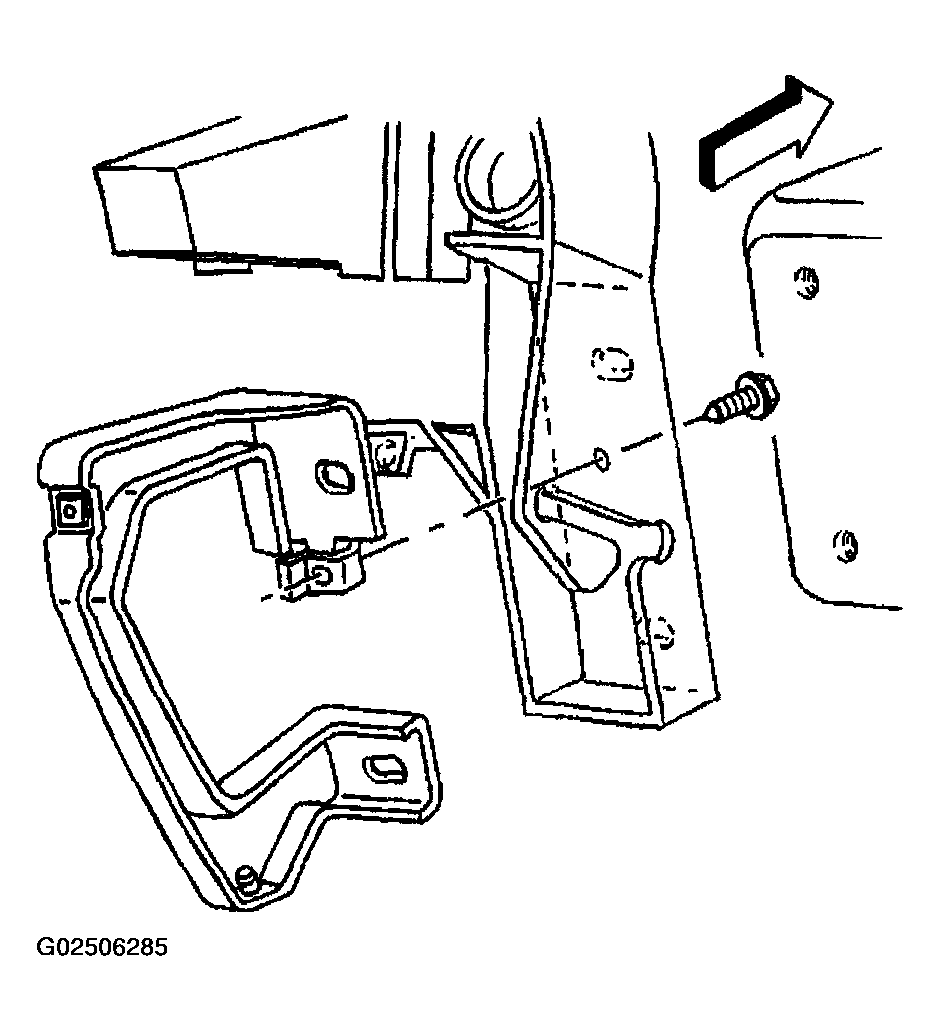

    3. Fig 1: Removing & Installing Knee Bolster Bracket Right Center
    G02506285Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the knee bolster bracket right side. Install the knee bolster bracket right side screws. Tighten:  Tighten the knee bolster bracket right side screws to 8 N.m (71 lb in).
  4. Roll the instrument panel up. Refer to IP Assembly Replacement  .
  5. Install the passenger's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - RIGHT  .

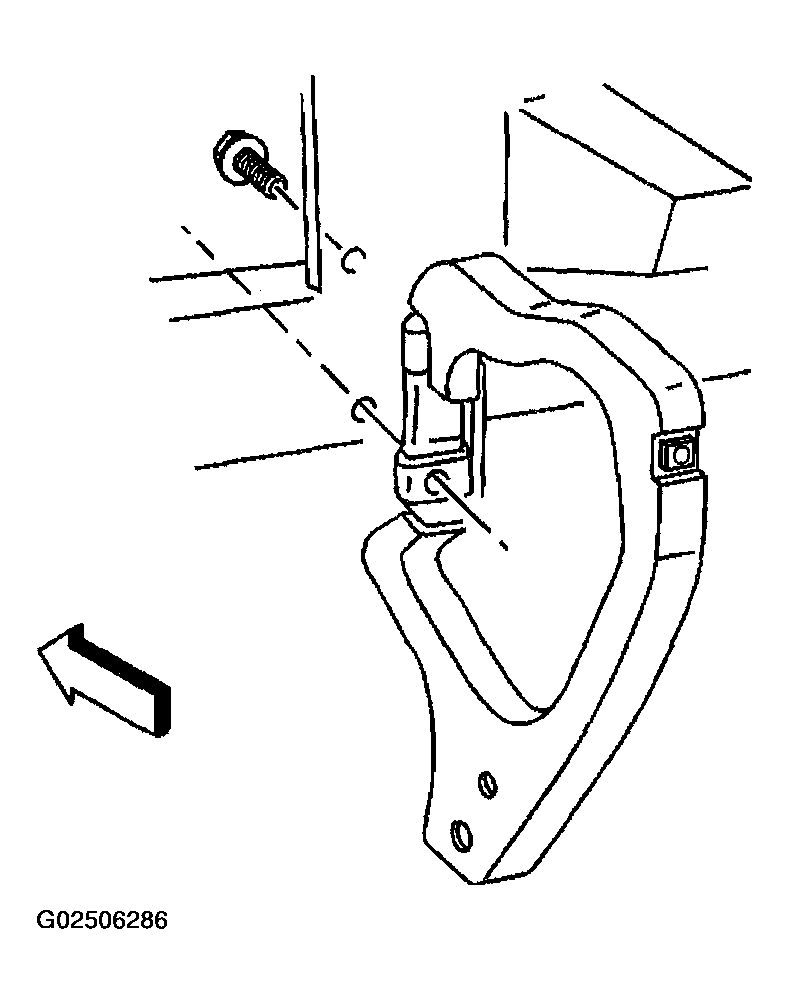

    Fig 2: Removing & Installing Knee Bolster Bracket Right Side
    G02506286Courtesy of GENERAL MOTORS CORP.
