Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT  .
  2. Remove the bolts that retain the brackets to the instrument panel trim pad.
  3. Roll the instrument panel back, but do not remove the instrument panel. Refer to IP Assembly Replacement  .
  4. Remove the bolts that retain the knee bolster brackets to the instrument panel carrier.
  5. Remove the knee bolster brackets from the vehicle.

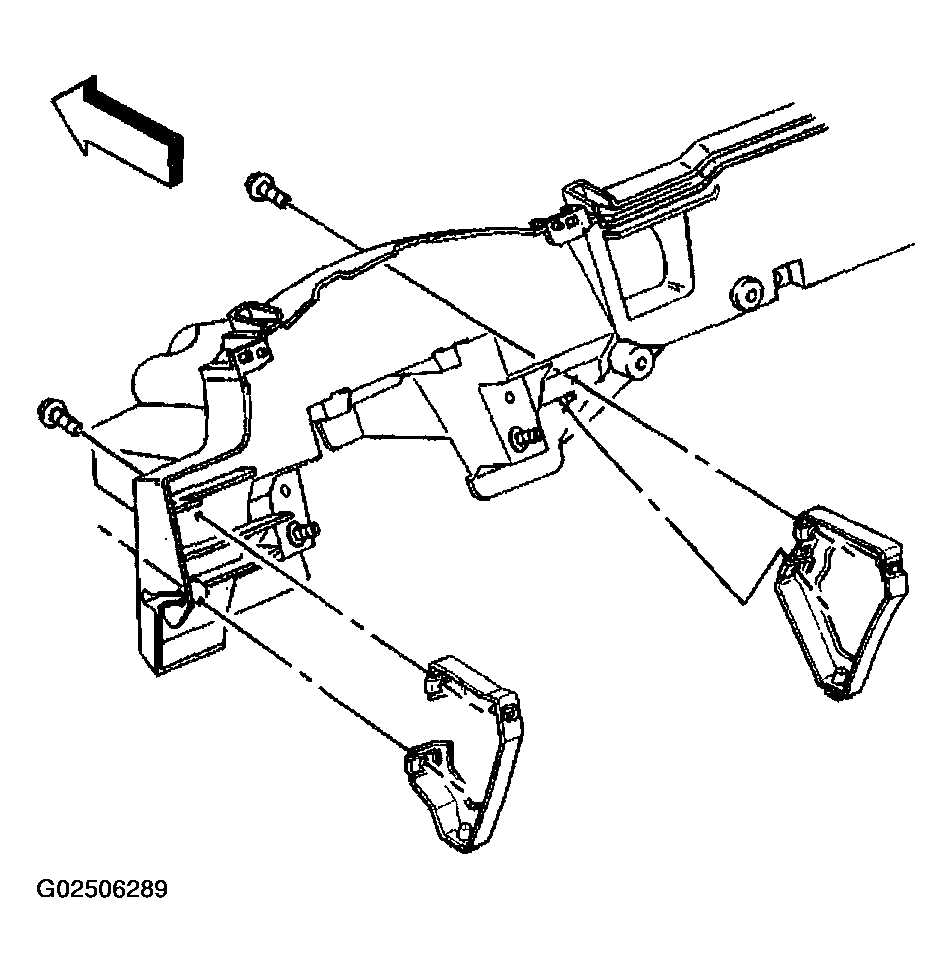

    6. Fig 1: Removing & Installing Left Knee Bolster Brackets
    G02506289Courtesy of GENERAL MOTORS CORP.
