Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system.
  2. Remove the instrument panel carrier. Refer to IP Carrier Replacement  .
  3. Remove the insulator clips from the insulator pad.
  4. Remove the insulator pad from the vehicle.

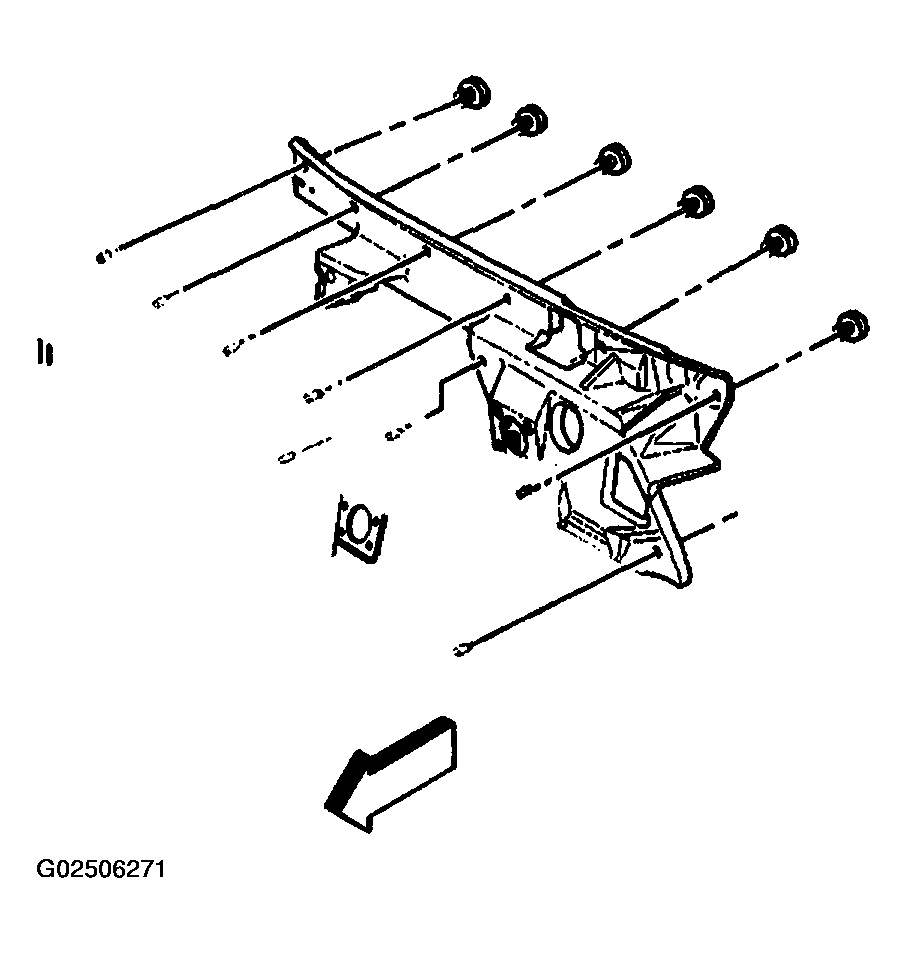

    5. Fig 1: Removing & Installing Instrument Panel Insulator Pad
    G02506271Courtesy of GENERAL MOTORS CORP.
