Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator pad to the vehicle.
  2. Install the insulator clips to the insulator pad.
  3. Install the instrument panel carrier. Refer to IP Carrier Replacement  .
  4. Enable the SIR.

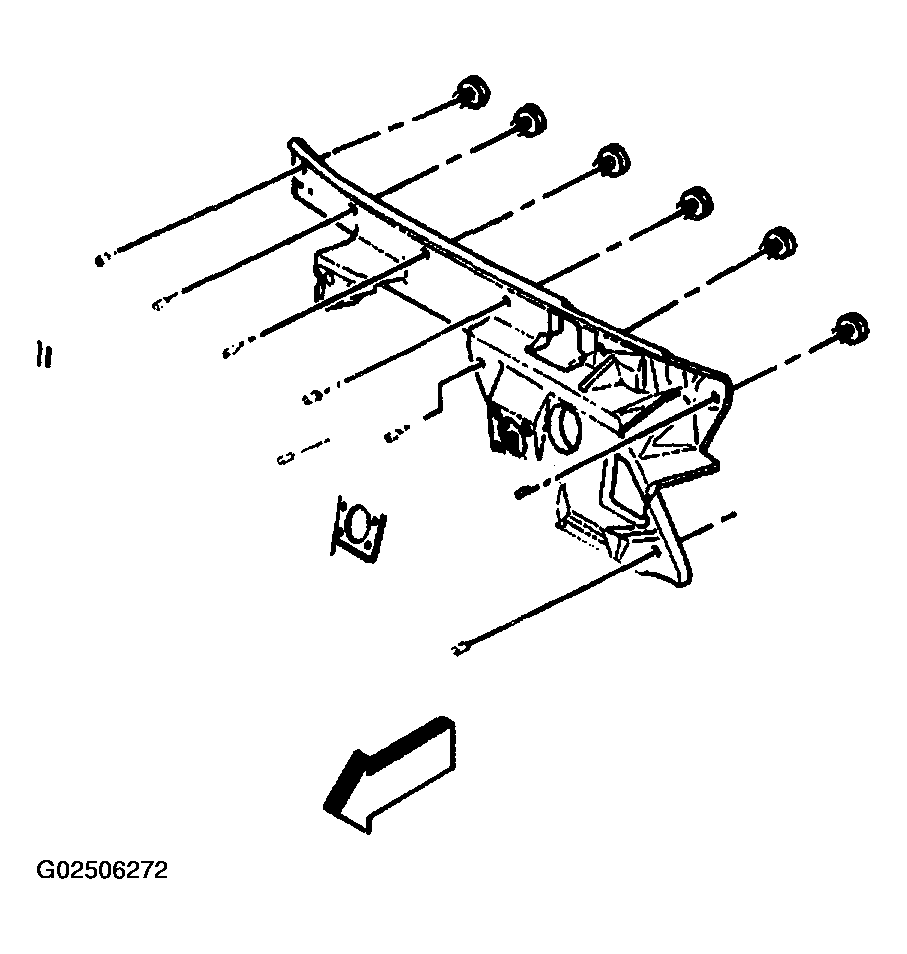

    5. Fig 1: Removing & Installing Instrument Panel Insulator Pad
    G02506272Courtesy of GENERAL MOTORS CORP.
