Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP CLUSTER  .
  2. Remove the four screws the retain the instrument panel cluster to the instrument panel.
  3. Gently pull the instrument cluster straight out.

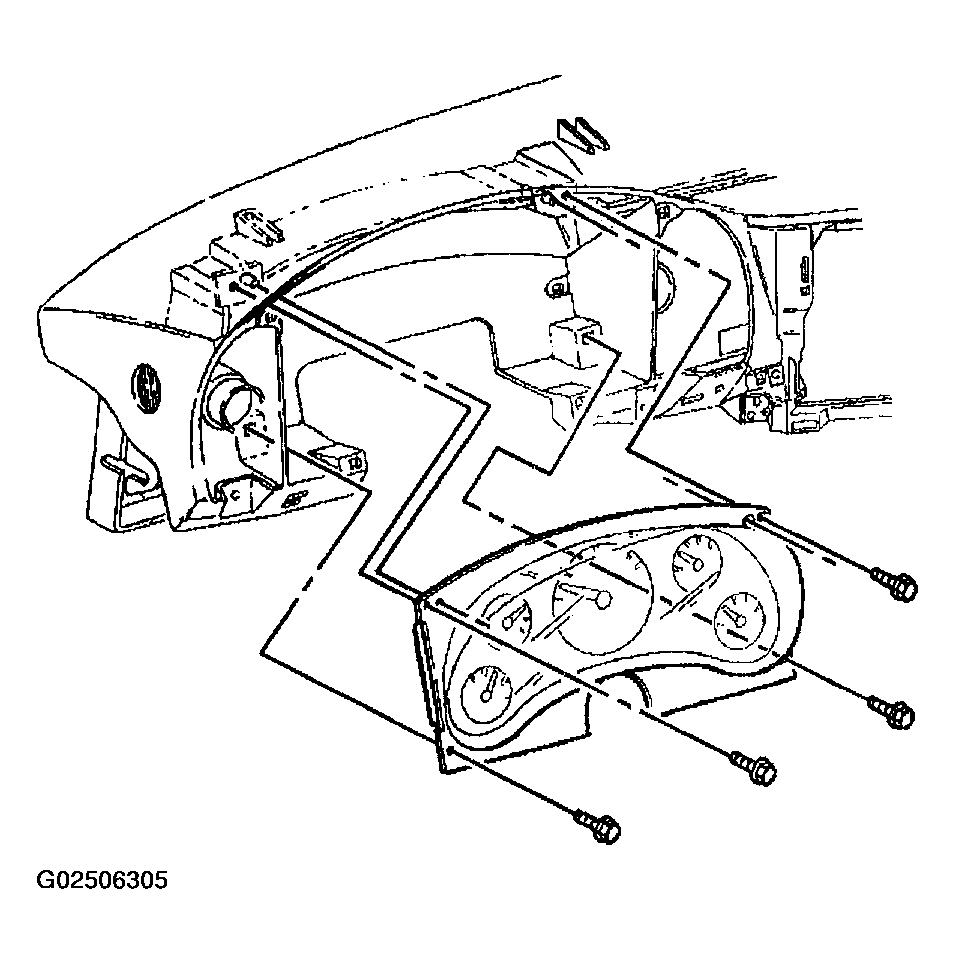

    4. Fig 1: Removing & Installing Instrument Panel Cluster
    G02506305Courtesy of GENERAL MOTORS CORP.
