Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pull the plate away from the instrument panel extension until all the retainers are released.
  2. Disconnect the electrical connectors, as needed.
  3. Remove the plate from the instrument panel extension.

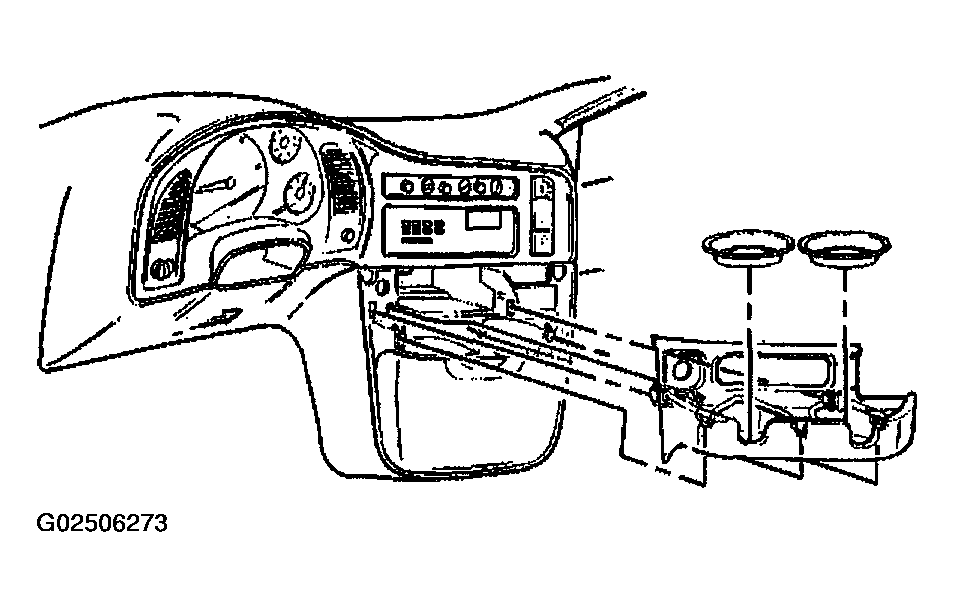

    4. Fig 1: Removing & Installing Instrument Panel Extension Trim Plate
    G02506273Courtesy of GENERAL MOTORS CORP.
