Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the plate to the instrument panel extension.
  2. Connect the electrical connectors, as needed.
  3. Press the plate into place until all the retainers are fully seated.

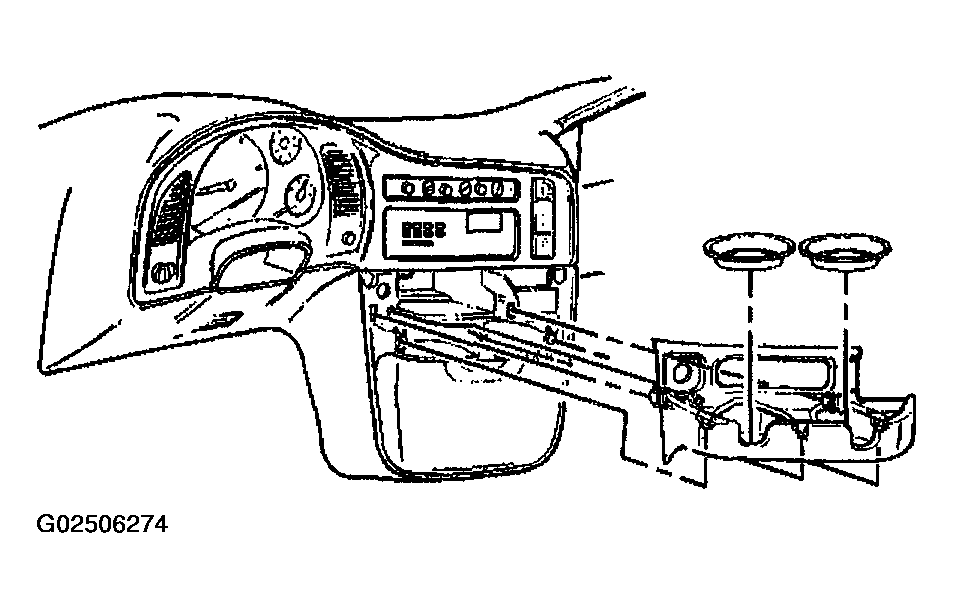

    4. Fig 1: Removing & Installing Instrument Panel Extension Trim Plate
    G02506274Courtesy of GENERAL MOTORS CORP.
