Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the caps that cover the extension screws.
  2. Remove the screws from the extension.
  3. Remove the nuts at the bottom of the extension.
  4. Pull toward the rear of the vehicle in order to remove the extension from the instrument panel.
  5. Disconnect the electrical connectors.

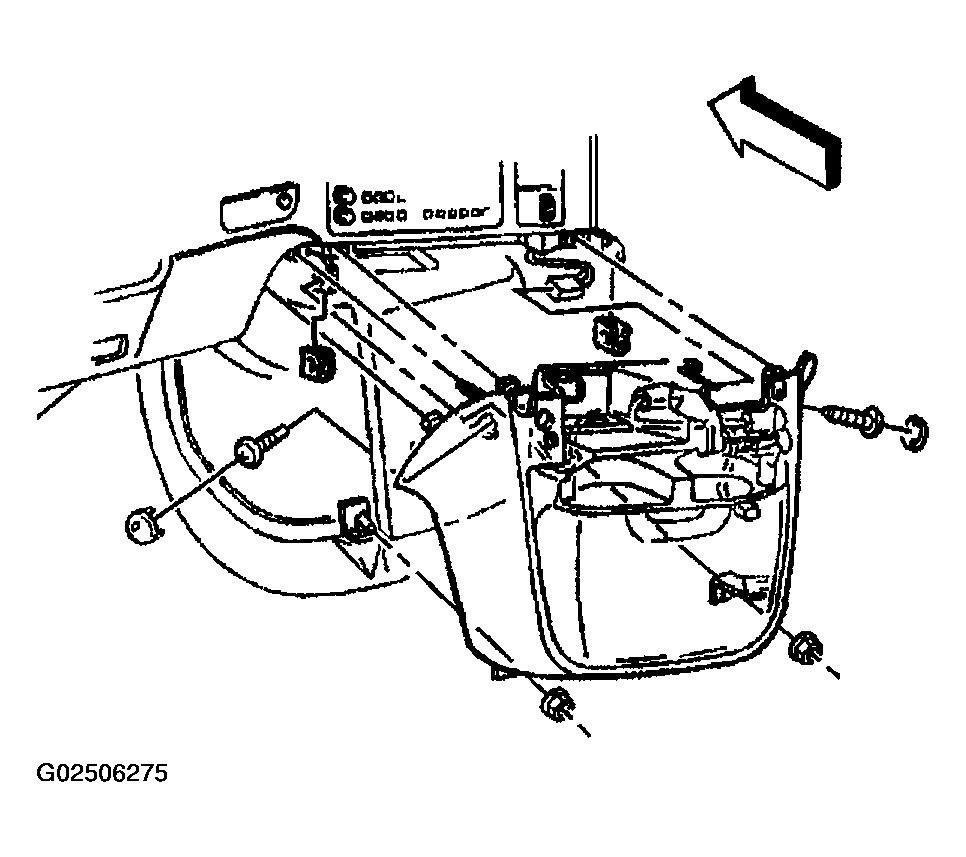

    6. Fig 1: Removing & Installing Instrument Panel Extension
    G02506275Courtesy of GENERAL MOTORS CORP.
