Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel from the vehicle. Refer to IP Assembly Replacement  .
  2. Remove the bolts that retain the carrier support to the cowl side panel.
  3. Remove the carrier support from the vehicle.

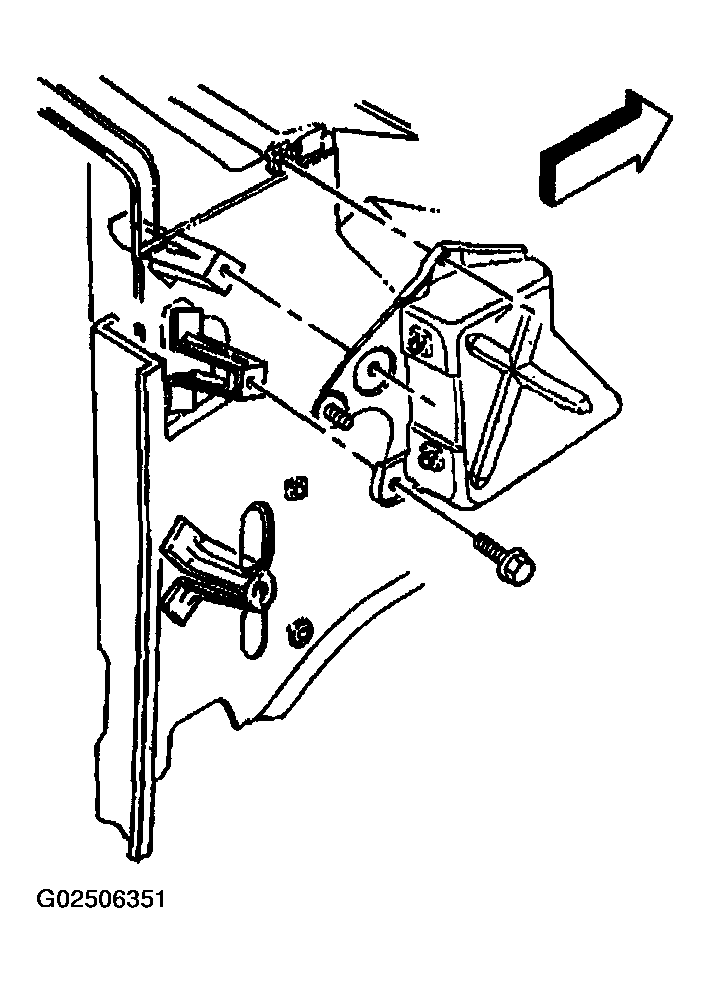

    4. Fig 1: Removing & Installing Instrument Panel Carrier Support
    G02506351Courtesy of GENERAL MOTORS CORP.
