Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the nuts and bolts that retain the instrument panel steering column reinforcement bracket to the instrument panel carrier. Tighten: Tighten the nuts and bolts to the steering column reinforcement bracket to the instrument panel carrier to 27 N.m (20 lb ft).
Install the instrument panel trim pad. Refer to TRIM PANEL REPLACEMENT - IP Cluster .

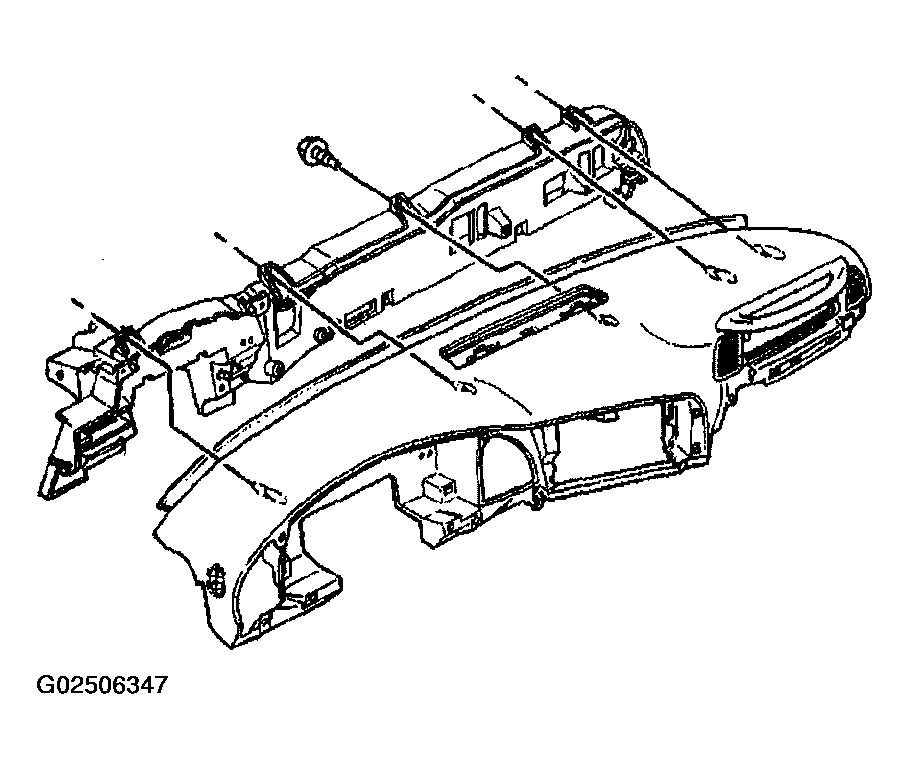

Fig 1: Locating Top Instrument Panel-To-Instrument Panel Carrier Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Install the instrument cluster to the instrument panel carrier with four retaining screws.

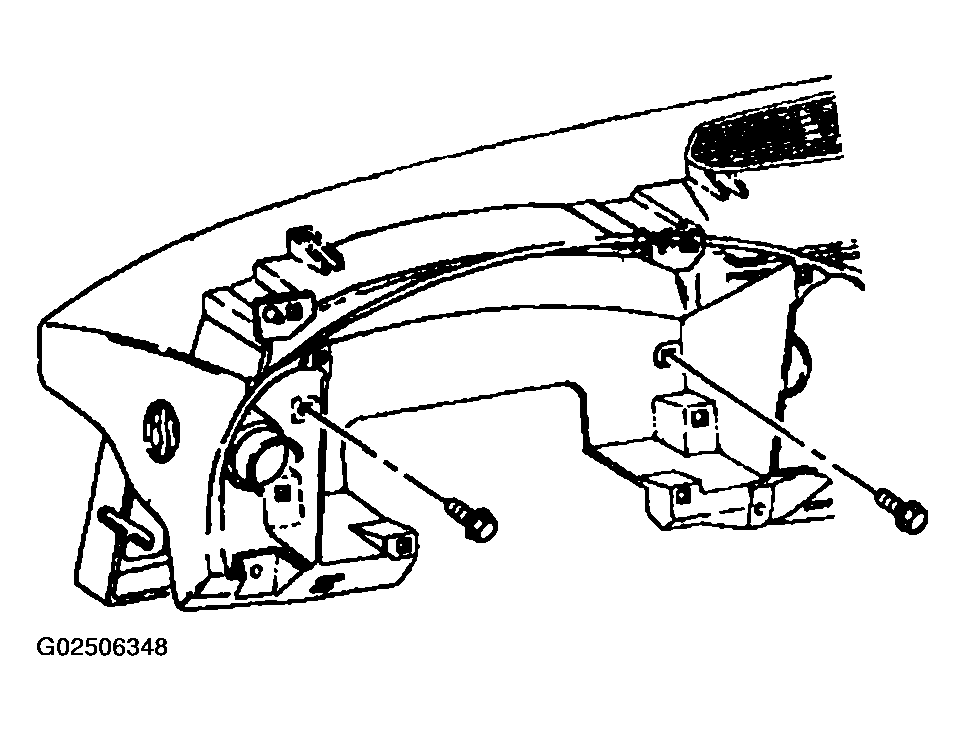

Fig 2: Identifying Instrument Cluster-To-Instrument Panel Carrier Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Install the nuts that retain the assist handle to the passenger's side of the instrument panel. Tighten: Tighten the nuts that retain the assist handle to the passenger's side of the instrument panel to 8 N.m (71 lb in).
Install the heater control head.
Install the two bolts that retain the RKE module to the carrier. Tighten: Tighten the two bolts that retain the RKE module to the carrier to 2 N.m (18 lb in).

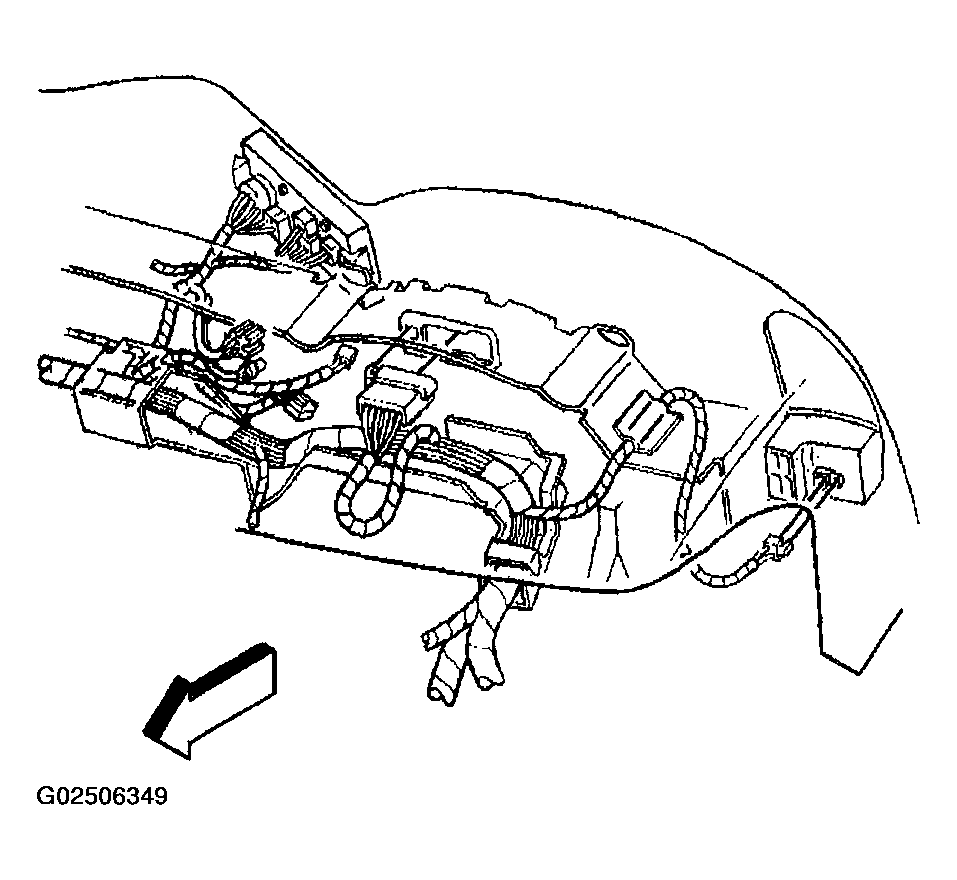

Fig 3: Identifying Instrument Panel Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Install the radio, if equipped. Refer to RADIO REPLACEMENT in Entertainment.
Install the inflatable restraint IP module.
Install the instrument panel to the vehicle. Refer to IP Assembly Replacement .
Enable the SIR.

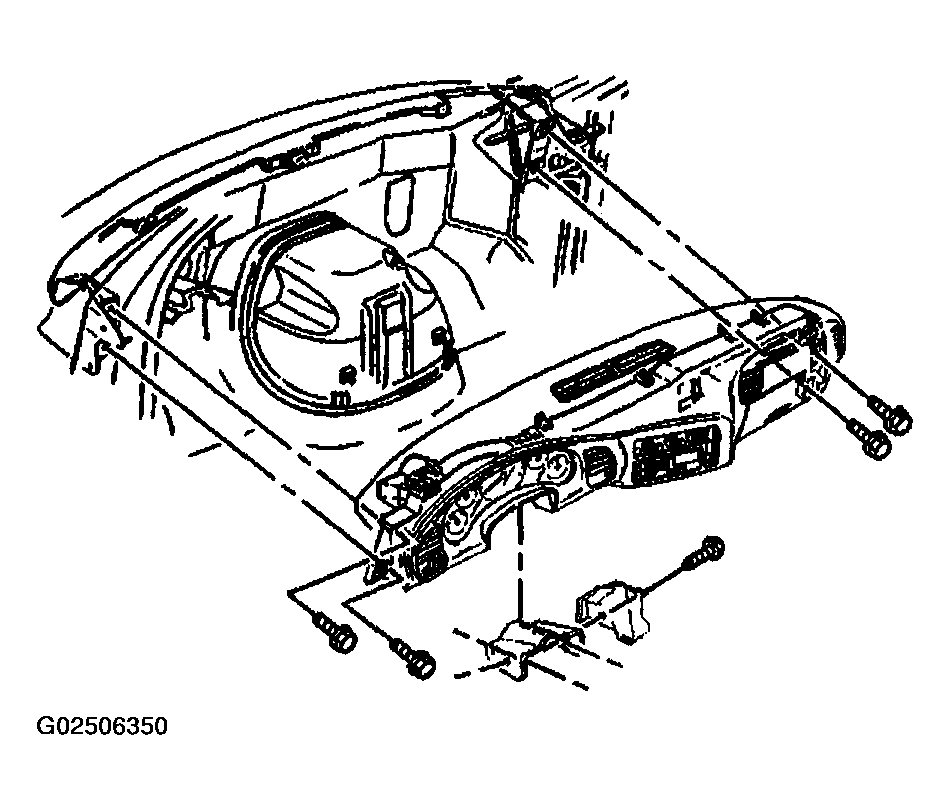

Fig 4: Locating Instrument Panel Carrier-To-Carrier Support Bracket Bolts & Bottom Instrument Panel-To-Instrument Panel Carrier Retaining Screws

Courtesy of GENERAL MOTORS CORP.
